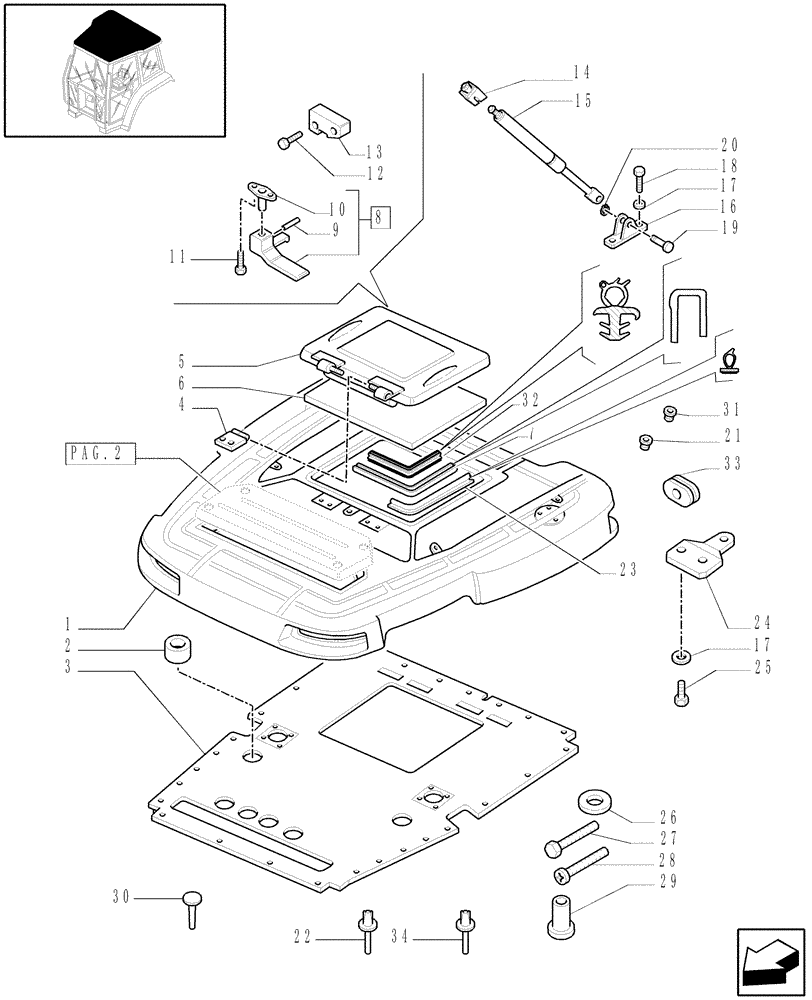

Запчасти Case IH JX90U (1.94.0[01]) - CAB WITH ESCAPE HATCH - CAB, ROOF, OPENING AND INTERNAL TRIMMING (10) - OPERATORS PLATFORM/CAB

1

47124330

ROOF

, Serial Range: -1326835

1шт.

1

47131396

ROOF

Red, Start Serial: 1326836

1шт.

1

47131397

ROOF

White, Start Serial: 1326836

1шт.

2

5181352

FOAM INSULATION

, Serial Range: -1326835

2шт.

2

47131771

INSULATOR

, Start Serial: 1326836

2шт.

3

5199503

SOFT TRIM

, Serial Range: -1326835

1шт.

3

47135778

SOFT TRIM

, Start Serial: 1326836

1шт.

4

47124976

HINGE

2шт.

5

47123901

LID

, Serial Range: -1326835

1шт.

5

47131654

LID

Red, VAR.626, Start Serial: 1326836

1шт.

5

47131651

HATCH

Red, Start Serial: 1326836

1шт.

5

47131652

LID

White, Start Serial: 1326836

1шт.

6

5199663

SOFT TRIM

, Serial Range: -1326835

1шт.

6

47131598

SOFT TRIM

, Start Serial: 1326836

1шт.

7

5180143

RUBBER SEAL

L= 2310MM

1шт.

8

87575079

HANDLE

1шт.

9

14159970

LOCK PIN,M2.5 x 20, Slotted

1шт.

10

5178206

PIN,10mm OD x 51mm L

1шт.

11

13299421

SCREW,M5 x 16mm

M5X16

2шт.

12

13301917

SCREW,Pozidriv Flat Hd, M6 x 30mm, Cl 5.8

2шт.

13

5108537

STRIKER PLATE

on hatch, Serial Range: -1326835

1шт.

13

47123966

LOCKING TAB

on roof

1шт.

14

5108539

BLOCK

2шт.

15

82002925

GAS STRUT

2шт.

16

82003514

BRACKET

2шт.

17

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

18шт.

18

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

19

5108541

LOCK PIN

2шт.

20

11087776

CIRCLIP,Ext., M6, BLO

6шт.

21

5116031

SPRING NUT

M8

2шт.

21

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

8шт.

22

5162852

RIVET,7.3mm OD x 12mm L

1шт.

23

82002903

RUBBER STRIP,2368mm L

L=2368MM

1шт.

24

47123948

BRACKET

2шт.

25

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

4шт.

26

5178211

WASHER,8.5mm ID x 30mm OD x 2.5mm Thk

12шт.

26

5178210

SEALING WASHER,M7 x 27 x 3 Thk

12шт.

26

12647004

WASHER,8.15mm ID x 25mm OD x 2.5mm Thk

6шт.

26

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

10шт.

27

16045421

BOLT,Hex, M8 x 110mm, Cl 8.8

2шт.

27

86574721

BOLT,Hex, M8 x 130mm, Cl 10.9

5шт.

27

16046031

SCREW,Hex, M8 x 1.25 x 140mm, Cl 10.9

4шт.

28

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

14шт.

28

13277017

SCREW,Pozidriv Pan Hd, M6 x 40mm

, Serial Range: -1326835

6шт.

28

13277517

SCREW,Cross Pan Hd, M6 x 60mm

, Serial Range: -1326835

4шт.

28

13276811

SCREW,Pozidriv Pan Hd, M6 x 30mm, Cl 5.8

, Start Serial: 1326836

6шт.

28

13277317

SCREW,Pozidriv Pan Hd, M6 x 55mm, Cl 5.8

, Start Serial: 1326836

4шт.

29

47124359

BUSHING

, Serial Range: -1326835

10шт.

29

47131686

BUSHING,6.5mm ID x 18mm OD x 11.5mm L

, Start Serial: 1326836

10шт.

30

47132418

FASTENER

25 x 25 x 8

1шт.

31

15629111

RIVET,Flat, M8 OD x 17.5mm L

L=2390MM

2шт.

32

47131614

RUBBER STRIP

, Start Serial: 1326836

1шт.

33

87565310

GROMMET,8mm ID x 28mm x 38mm x 10mm

, Start Serial: 1326836

2шт.

34

5162851

RIVET,7.3mm OD x 19mm L

1шт.
