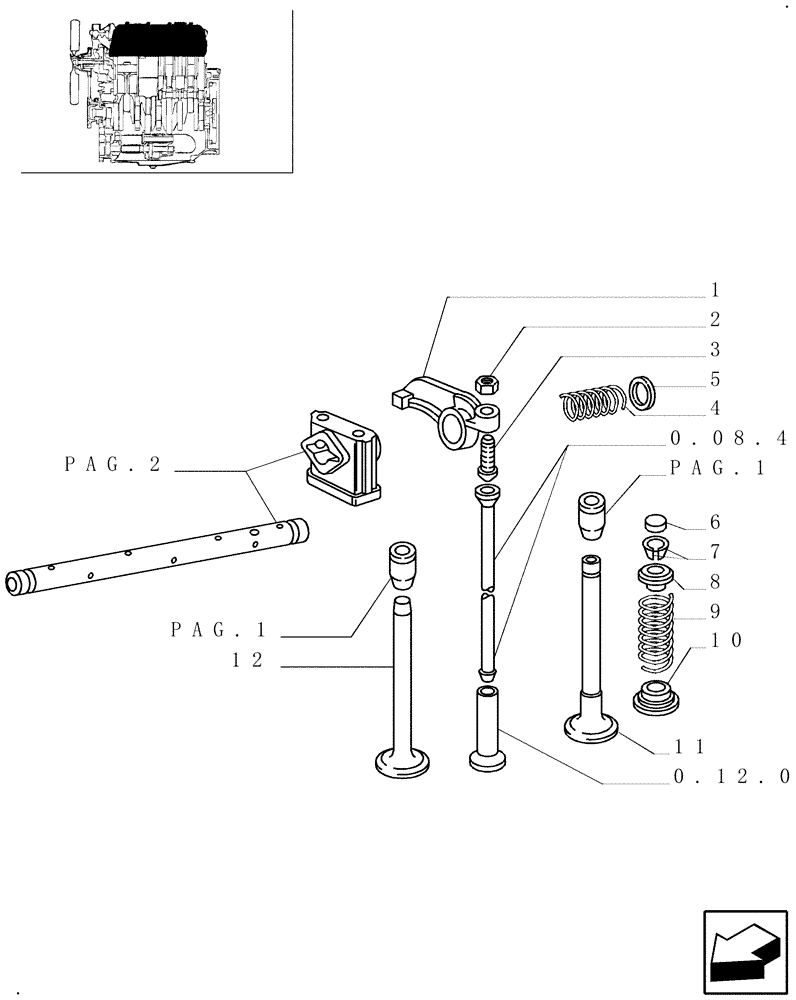

Запчасти Case IH JX90U (0.06.0[03]) - CYLINDER HEAD (01) - ENGINE

1

4848973

ROCKER ARM

8шт.

2

4338920

NUT

8шт.

3

4699783

ADJUSTMENT SCREW

8шт.

4

4601296

SPRING,Extension, 22.1mm OD x 59.5mm L

3шт.

5

4639661

THRUST WASHER,18mm ID x 24mm OD x 1mm

1.0mm

6шт.

6

4838680

CAP

8шт.

7

14196670

ROCKER ARM COTTER

16шт.

8

4780558

CUP

Upper

8шт.

9

4812347

SPRING,Extension, 33mm OD x 44.6mm L

8шт.

10

4817424

CUP

Lower

8шт.

11

4824417

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

12

99432717

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.
