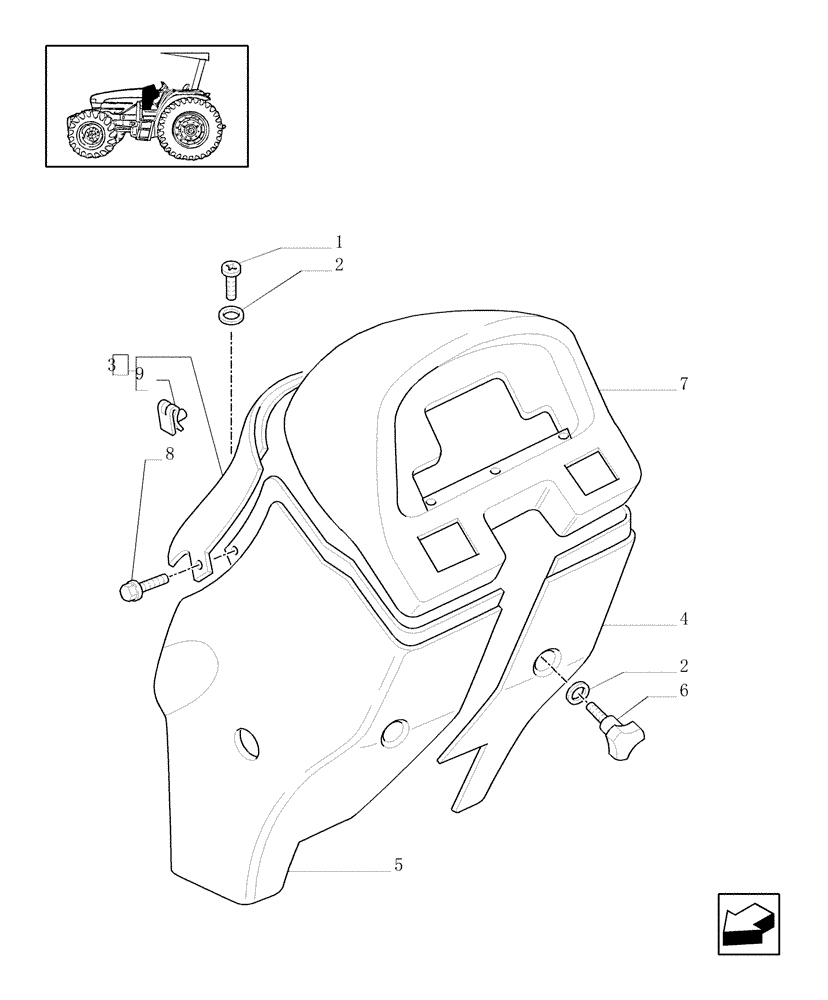

Запчасти Case IH JX90U (1.93.5) - INSTRUMENTAL PANEL (L/CAB) (10) - OPERATORS PLATFORM/CAB

1

14778914

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

8шт.

2

12647604

WASHER,6.15mm ID x 16mm OD x 2mm Thk

8шт.

3

5175424

PANEL

Upper

1шт.

4

47125854

PANEL

RH

1шт.

5

5171894

PANEL

LH

1шт.

6

5178910

KNOB

4шт.

7

82004208

PANEL

1шт.

8

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

2шт.

9

82006114

SPRING NUT

M6X1

3шт.
