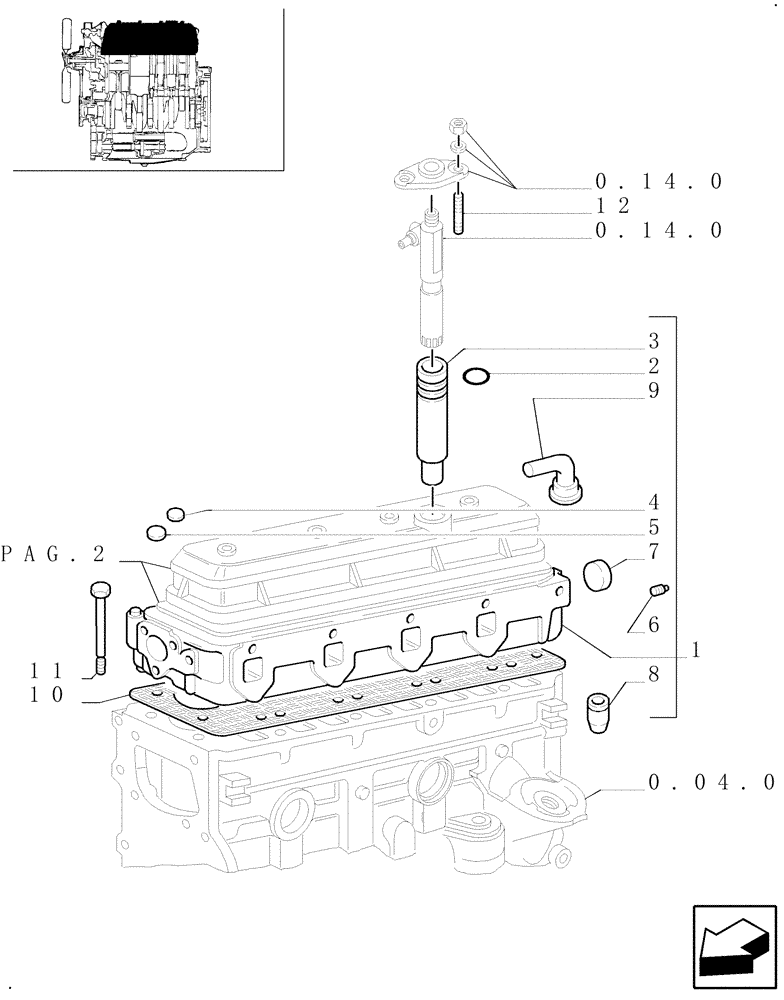

Запчасти Case IH JX90U (0.06.0[01]) - CYLINDER HEAD (01) - ENGINE

1

99453763

CYLINDER HEAD

JX90U, JX100U

1шт.

1

99453762

CYLINDER HEAD

JX70U, JX80U

1шт.

2

14453981

O-RING,0.989" ID x 0.07" Width

8шт.

3

4770859

SLEEVE

4шт.

4

14282170

PLUG,M20, Tapered, Stainless

1шт.

5

14282470

PLUG,M28, Tapered, Stainless

8шт.

6

99434231

PLUG

M10 x 1.25

1шт.

7

14282970

PLUG,M45, Tapered, Stainless

1шт.

8

4802126

VALVE GUIDE

+0.0

8шт.

8

4802127

VALVE GUIDE

+0.2

8шт.

9

4818862

HYD TUBE

4шт.

10

98456215

GASKET,1.35mm Thk

Thk 1.35, JX80U, JX90U, JX100U

1шт.

10

98472008

GASKET,1.54mm Thk

THK.1,35, JX70U

1шт.

10

99481357

CYLINDER HEAD GASKET

THK.1,55, JX70U

1шт.

10

98456216

CYLINDER HEAD GASKET,1.54mm Thk

Thk 1.55, JX80U, JX90U, JX100U

1шт.

11

4796457

BOLT,Flng, M12 x 1.25 x 122.5mm

M12X1.25

18шт.

12

13517530

STUD,M8 x 1.25 x 45mm

M8X1.25X45

8шт.
