Запчасти Case IH JX90U (0.04.3[02]) - ENGINE COVERS & GASKETS (01) - ENGINE

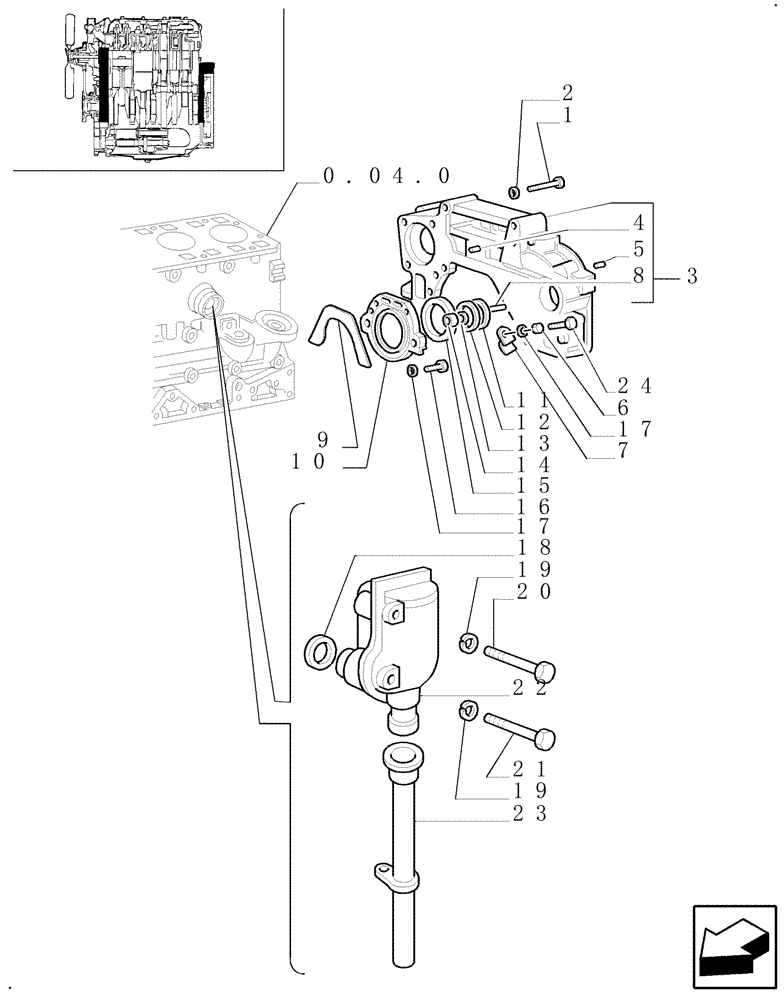

Схема запчастей Case IH JX90U - (0.04.3[02]) - ENGINE COVERS & GASKETS (01) - ENGINE
6
12
0.04.0
10
21
15
23
24
4
16
19
20
7
11
3
8
5
17
13
9
14
18
1
2
17
22
19

Артикул

Название

Примечание

Количество

1

11115621

SCREW,Hex, M14 x 35mm, Cl 8.8

2шт.

1

16613324

SCREW,Hex, M14 x 100mm

M14 X 1.5 X 100

4шт.

2

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

M14

4шт.

3

500338857

COVER

1шт.

4

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

5

4658441

DOWEL,10mm OD x 20mm L

2шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

7

500327025

OPERATOR TIMING REF/

OPERATOR TIMING REF/

1шт.

8

13517521

STUD

M8X21X12

1шт.

9

4849994

GASKET,0.8mm Thk

1шт.

10

98489586

COVER

2шт.

11

98400797

GASKET,47mm ID x 62mm OD x 0.8mm Thk

1шт.

12

4670802

COVER

1шт.

13

17094960

SEAL

1шт.

14

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

15

98461686

SEAL

114X135X13

1шт.

16

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

17

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

5шт.

18

4600893

SEAL,37mm ID x 47mm OD x 4mm Thk

M37X45

1шт.

19

4760498

LOCK WASHER

8X14

3шт.

19

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

20

16044921

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

1шт.

21

16045621

SCREW,Hex, M8 x 120mm, Cl 8.8

1шт.

22

4624515

BREATHER

1шт.

23

4750412

TUBE

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 26
