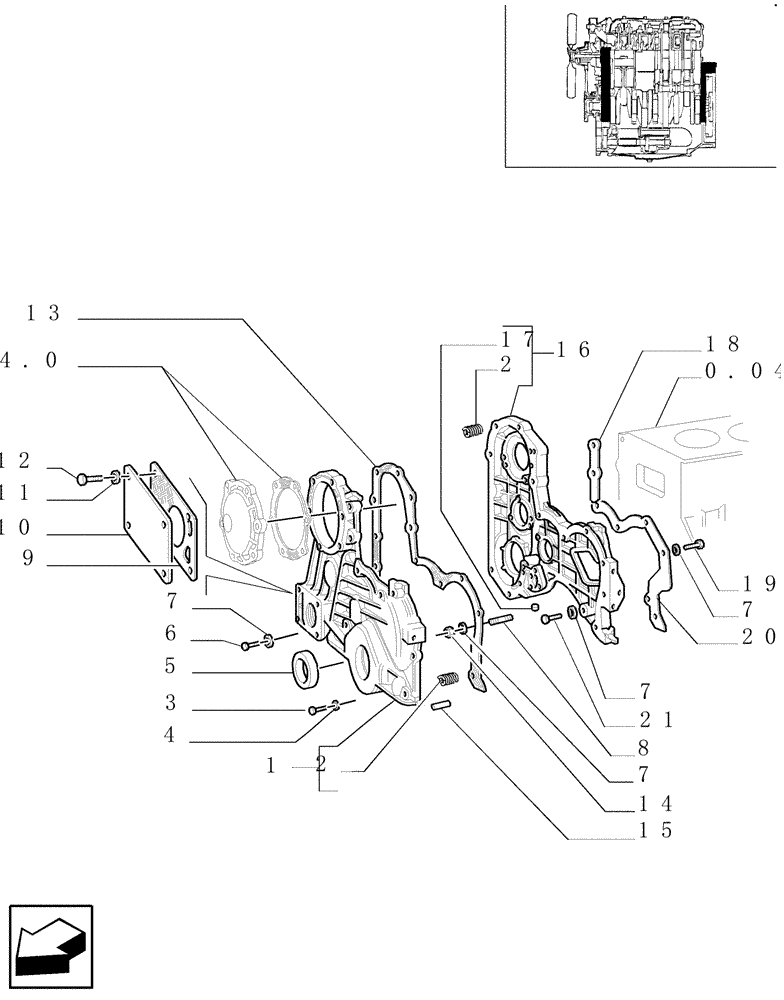

Запчасти Case IH JX90U (0.04.3[01]) - ENGINE COVERS & GASKETS (01) - ENGINE

1

4769749

COVER

1шт.

2

13526170

THREADED INSERT

5шт.

3

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

4

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

M10X18

1шт.

5

98461684

SEALING WASHER

42X65X12

1шт.

6

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

6

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

3шт.

6

16044921

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

3шт.

6

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

7

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

15шт.

8

13543624

STUD,M8 x 1.25 x 46mm L, 22 Thd, Cl 8.8

M8 x 16 x 30

4шт.

8

13546921

STUD,M10 x 1.25 x 20mm x 50mm

M10 X20X50

3шт.

8

500346886

STUD

M8X14X35

3шт.

9

500378759

SEAL

1шт.

10

564530

COVER

1шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

12

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

4шт.

13

98418138

GASKET,0.8mm Thk

1шт.

14

16100821

NUT,M8, Cl 10

1шт.

15

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

2шт.

16

4786512

HOUSING

JX70U, JX80U, JX90U

1шт.

16

99448898

COVER

JX100U

1шт.

17

4605220

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

18

98432469

GASKET,0.8mm Thk

Upper

1шт.

19

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

20

98424046

GASKET,0.8mm Thk

Lower

1шт.

21

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.
