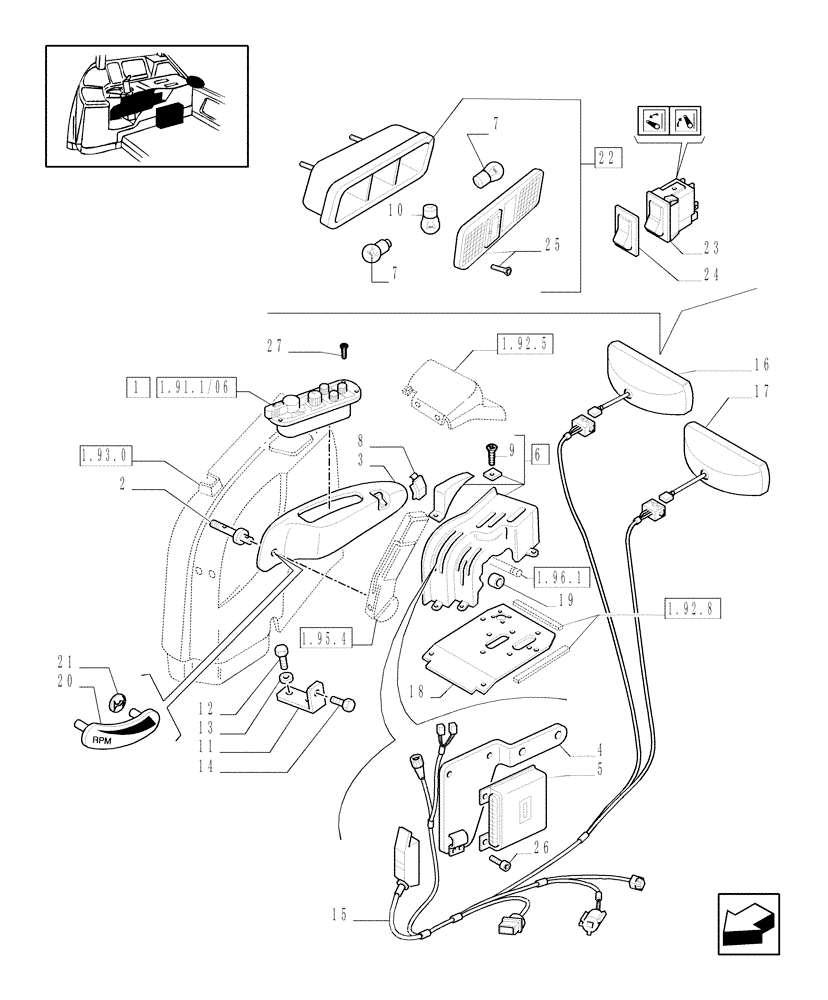

Запчасти Case IH JX90U (1.91.1/03) - (VAR.250-251) ELECTRONIC LIFTING - CONTROL PANEL (10) - OPERATORS PLATFORM/CAB

1

5189660

PANEL

1шт.

2

5183603

PIN

1шт.

3

5183526

SUPPORT

1шт.

4

5183082

BRACKET

1шт.

5

5189659

ECU

1шт.

5

47132440

ECU

1шт.

In Production From 20 February 2004 To 14 December 2004

1шт.

6

5183540

COVER

, Serial Range: -1305008

1шт.

6

47129296

COVER

, Start Serial: 1305009

1шт.

7

529068

BULB,#1156, 12V, 21W

4шт.

8

5166218

PLUG,Switch

1шт.

9

15909401

SELF-TAP SCREW,Cross Oval Hd, M3.5 x 19

2шт.

10

529068

BULB,#1156, 12V, 21W

10W

2шт.

11

5183300

BRACKET

1шт.

12

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

13

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

14

14358631

HEX SOC SCREW,M5 x 22mm, Cl 10.9

1шт.

15

47125754

ELECTRIC CABLE

1шт.

16

5182219

TAIL LAMP

RH, 251

1шт.

17

5181821

TAIL LAMP

LH, VAR.251

1шт.

18

5182999

PLATE

1шт.

19

5154839

SPACER,21mm ID x 35mm OD x 22mm L

21X35X22

2шт.

20

5183606

DATA PLAQUE

1шт.

21

14227474

NUT,M3, Push

2шт.

22

82007634

LAMP,12V, 21W, Amber/Red

2шт.

23

5173877

TOGGLE SWITCH

2шт.

24

5169266

PROTECTION CAP

2шт.

25

82004330

LENS

2шт.

26

5165401

SCREW

M6X12

2шт.

27

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

4шт.
