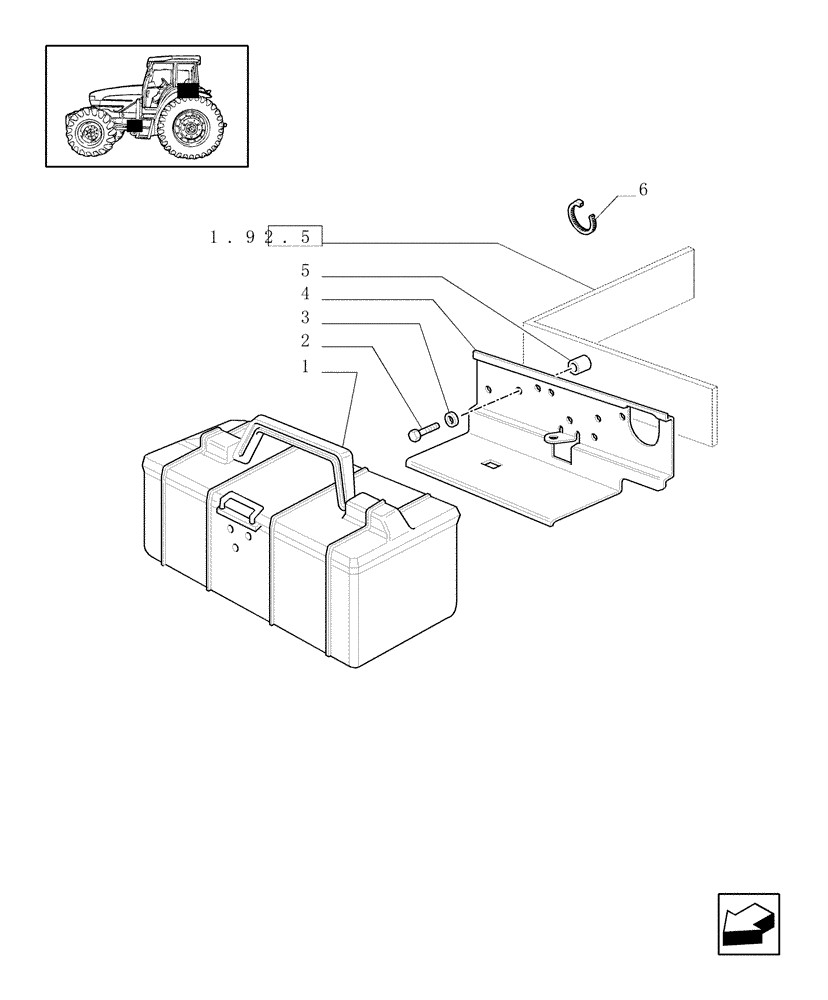

Запчасти Case IH JX90U (1.90.5) - SUPPORT & TOOLBOX (10) - OPERATORS PLATFORM/CAB

1

87386543

TOOL BOX

17" long x 7" wide x 6" tall

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

47124109

SUPPORT

W/Cab, Serial Range: -1326835

1шт.

4

47124939

SUPPORT

L/Cab, Serial Range: -1326835

1шт.

4

47130868

SUPPORT

W/Cab, Start Serial: 1326836

1шт.

4

47130869

SUPPORT

L/Cab, Start Serial: 1326836

1шт.

5

13605915

SPACER,9mm ID x 18mm OD x 15mm L

2шт.

6

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.
