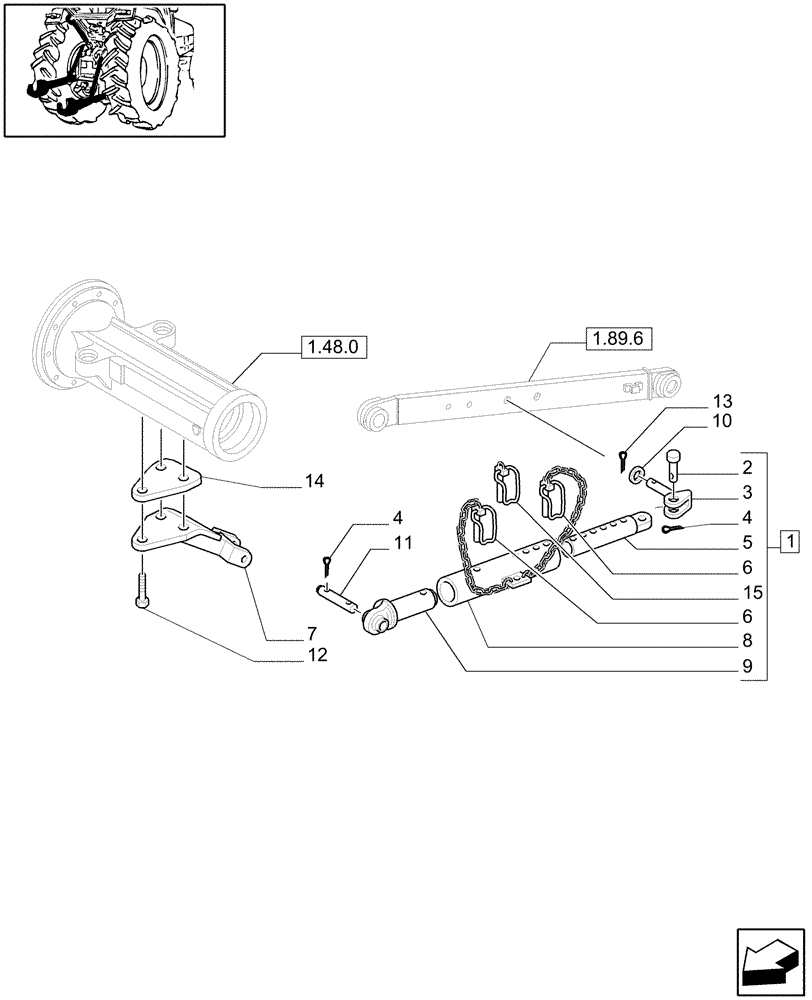

Запчасти Case IH JX90U (1.89.9) - IMPLEMENT HITCHING - SUPPORT & STABILIZER SPRAG (09) - IMPLEMENT LIFT

1

47123374

STABILIZER

2шт.

2

47133051

PIN,20mm OD x 59mm L

2шт.

3

5123274

PIN

2шт.

4

10798301

COTTER PIN,M6.3 x 36

6шт.

5

5184565

STABILIZER

REAR

2шт.

6

5185232

ROLL PIN,14mm OD

, Serial Range: -C4913

4шт.

7

5127401

SUPPORT

2шт.

8

5184564

ADJUSTING SLEEVE

2шт.

9

5174917

END

FRONT

2шт.

10

562106

WASHER,25.50mm ID x 45.00mm OD

2шт.

11

5125861

PIN,19mm OD x 105mm L

FRONT

2шт.

12

15984124

SCREW,Hex, M18 x 1.5 x 45mm, Cl 8.8, Full Thd

JX70U, JX80U, JX90U

6шт.

12

15984324

SCREW,Hex, M18 x 1.5 x 50mm, Cl 8.8, Full Thd

JX100U

6шт.

13

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

14

5199434

PLATE

JX100U

2шт.

15

82019234

PIN,14mm OD

, Start Serial: D4913

4шт.
