(1.89.6/06) - (VAR.922) THREE POINT HITCH WITH QUICK ATTACH ENDS & RELATED PARTS "C.B.M."

Запчасти Case IH JX90U (1.89.6/06) - (VAR.922) THREE POINT HITCH WITH QUICK ATTACH ENDS & RELATED PARTS "C.B.M." (09) - IMPLEMENT LIFT

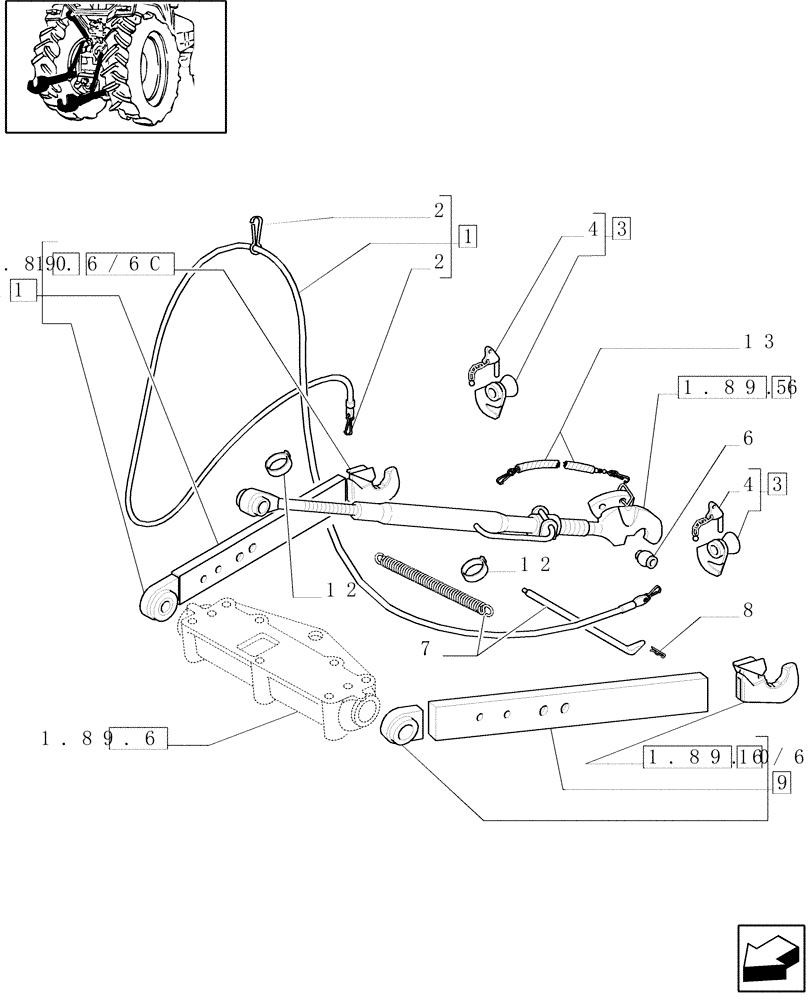

Схема запчастей Case IH JX90U - (1.89.6/06) - (VAR.922) THREE POINT HITCH WITH QUICK ATTACH ENDS & RELATED PARTS "C.B.M." (09) - IMPLEMENT LIFT
3
1
3
12
1.89.6/6a
1.89.6/6c
11
4
1.89.6
1.89.6/6c
8
9
2
13
10
5
7
4
10
2
6
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5116063

ROPE,4500mm L

1шт.

2

9961939

HOOK

3шт.

3

5127760

BALL

2 CAT.

2шт.

4

9958936

ROLL PIN

2шт.

5

47123398

UPPER LINK

1шт.

6

5172480

BALL,25.4mm ID x 50mm OD

2 CAT.

1шт.

7

5116058

SPRING,610mm L

1шт.

8

44901190

COTTER PIN,6.3mm x 77.6mm L

2шт.

9

5199445

LIFT ARM

LH

1шт.

10

5189331

HOOK

2шт.

11

5199444

LIFT ARM

RH

1шт.

12

5110543

CLAMP

2шт.

13

5174395

CABLE,1250mm L, Cat 2, Red Ruby

1шт.

Выбрано товаров: 13
