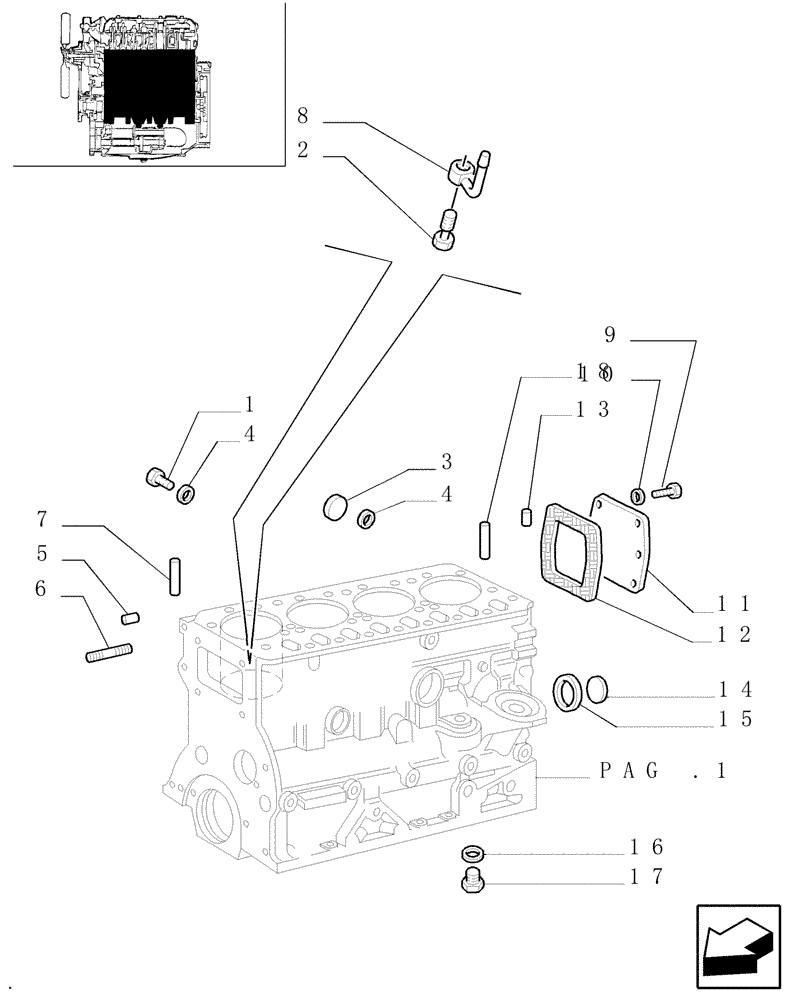

Запчасти Case IH JX90U (0.04.0[02]) - CRANKCASE AND CYLINDERS (01) - ENGINE

1

98415314

PLUG

M22 x 1.5, JX70U, JX80U

1шт.

2

98475228

BANJO BOLT

JX100U

4шт.

3

4665029

PLUG

M42 x 1.5

1шт.

4

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

JX70U, JX80U

1шт.

4

10265460

SEAL

D=49 x 42 x 1.5

1шт.

5

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

2шт.

6

13517821

STUD,M8 x 1.25 x 60mm, Cl 8.8

M8X1.25X60

1шт.

7

14165470

LOCK PIN,M5 x 10, Slotted

JX90U, JX100U

1шт.

8

98475474

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE JX100U

4шт.

9

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

10

1193874

LOCK WASHER

M8X16X1,4

6шт.

11

4653282

COVER

1шт.

12

99445564

GASKET

1шт.

13

4846850

DOWEL,M9 x 12mm

9 x 12

2шт.

14

98412737

PLUG,55mm ID x 63.93mm OD x 8mm Thk, w/O-Ring

M63

1шт.

15

14459981

O-RING,58.42mm ID x 0.103" Width

1шт.

16

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

M12, JX90U, JX100U

1шт.

17

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

JX90U, JX100U

1шт.

18

98437425

DOWEL

JX90U, JX100U

1шт.
