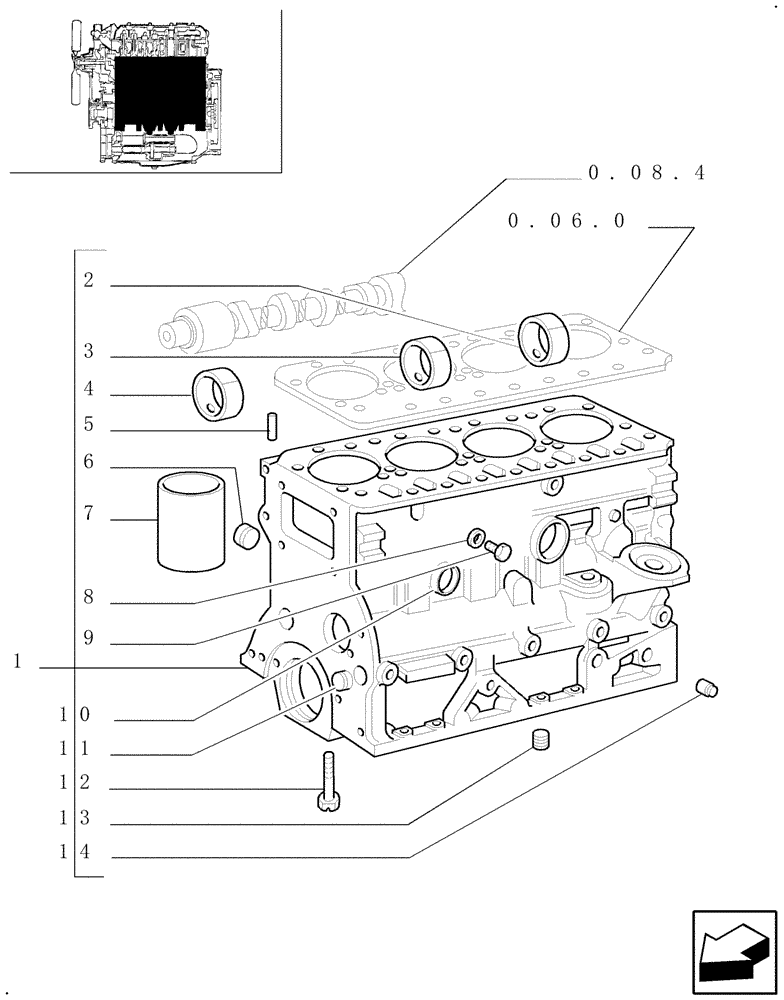

Запчасти Case IH JX90U (0.04.0[01]) - CRANKCASE AND CYLINDERS (01) - ENGINE

1

98427099

CYLINDER BLOCK

JX100U

1шт.

1

98444089

CYLINDER BLOCK

JX70U

1шт.

1

98444093

CYLINDER BLOCK

JX80U

1шт.

1

98455386

CYLINDER BLOCK

JX90U

1шт.

2

4718620

BUSHING,49.53mm ID x 53.93mm OD x 25mm L

1шт.

3

4718619

BUSHING,50.63mm ID x 54.53mm OD x 28mm L

1шт.

4

500377608

BUSHING

1шт.

5

14165470

LOCK PIN,M5 x 10, Slotted

1шт.

6

14282770

PLUG,M36, Tapered, Stainless

4шт.

6

10160704

PLUG,M60, Tapered

JX70U, JX80U

1шт.

6

14327401

PLUG,M13, Tapered

JX100U

1шт.

6

14328201

PLUG,M10, Tapered

JX100U

1шт.

7

4770623

LINER, ENGINE CYLIND

+0.0, JX80U, JX90U, JX100U

4шт.

7

4770624

LINER, ENGINE CYLIND

+0.2, JX80U, JX90U, JX100U

4шт.

7

4770654

LINER, ENGINE CYLIND

+0.0, JX70U

4шт.

7

4770655

LINER, ENGINE CYLIND

+0.2, JX70U

4шт.

8

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

M20 IDX1.5 Thk, JX80U

1шт.

9

98409498

DRAIN PLUG

M20X1.5, JX80U

1шт.

10

14329901

PLUG,M40, Tapered

1шт.

11

14328501

PLUG,M16, Tapered

5шт.

12

4792169

BOLT,Hex, M14 x 1.5 x 115mm

M14 x 1.5 x 137

10шт.

13

99434268

PLUG

M16 x 1.5

1шт.

14

99434231

PLUG

M10 x 1.25

1шт.
