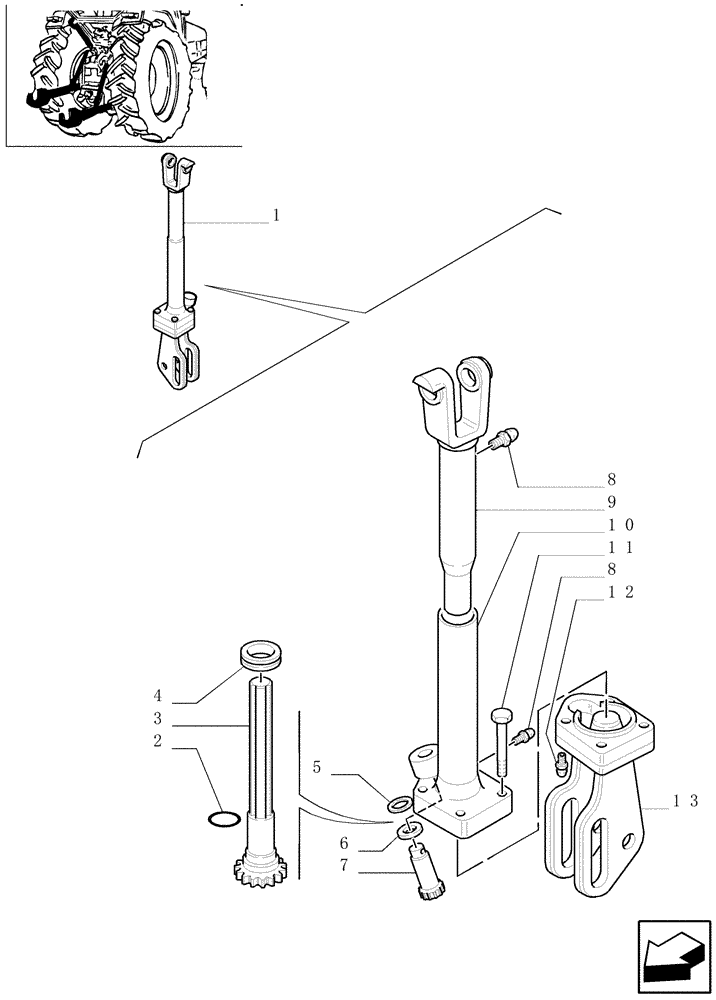

Запчасти Case IH JX90U (1.89.3/014A) - (VAR.929) IMPLEMENT CARRIER W/CAB (09) - IMPLEMENT LIFT

1

5171290

TIE-ROD

1шт.

2

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

3

5130442

DRIVEN GEAR

1шт.

4

26800800

BALL BEARING

Roller/Taper

1шт.

5

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

6

4999029

WASHER,16.5mm ID x 27mm OD x 6mm Thk

1шт.

7

5130441

DRIVING GEAR

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

2шт.

9

5139390

YOKE

Universal Joint

1шт.

10

5199403

LIFT ARM

1шт.

11

15888724

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

4шт.

12

13410990

HYDRAULIC VALVE

1шт.

13

5199402

TRACK ROD END ASSY

Universal Joint

1шт.
