Запчасти Case IH JX90U (1.82.7/14[01]) - (VAR.419) THREE CONTROL VALVES BOSCH - PIPES & CONTROL VALVES (07) - HYDRAULIC SYSTEM

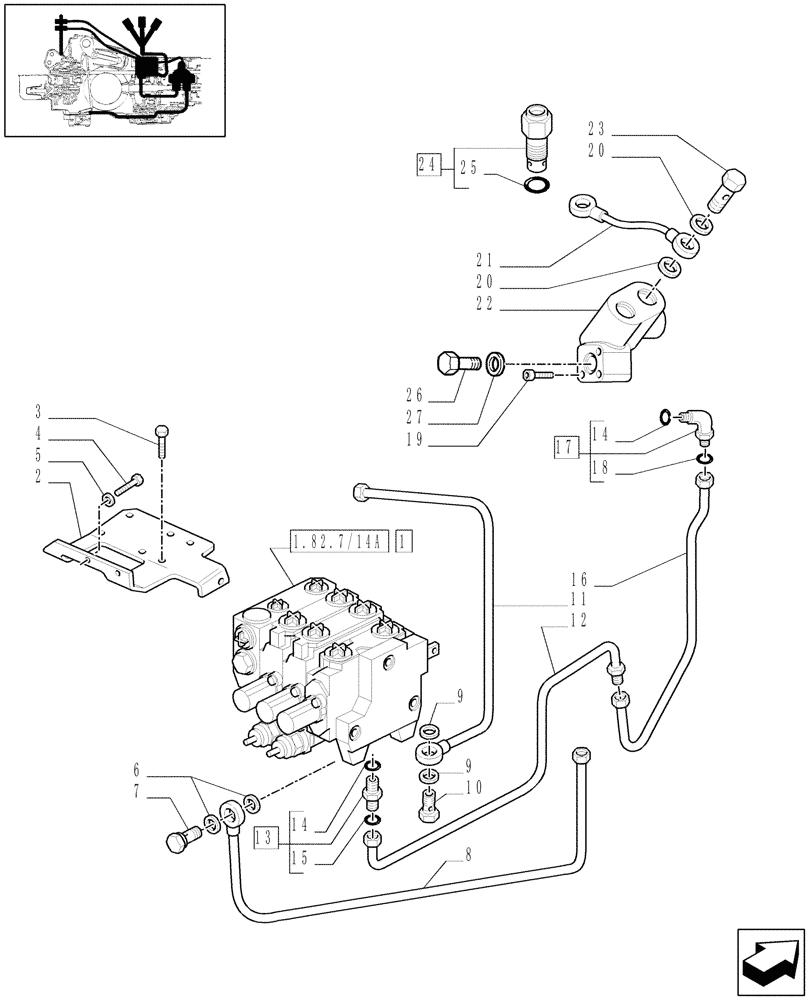

Схема запчастей Case IH JX90U - (1.82.7/14[01]) - (VAR.419) THREE CONTROL VALVES BOSCH - PIPES & CONTROL VALVES (07) - HYDRAULIC SYSTEM
1.82.7/14a
16
9
14
24
12
21
17
1
25
10
19
26
14
27
6
8
23
13
20
22
18
11
9
2
15
3
7
4
5
20

Артикул

Название

Примечание

Количество

1

47129343

CONTROL VALVE

1шт.

2

47123301

SUPPORT

1шт.

3

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

4

11109221

BOLT,Hex, M12 x 22mm, Cl 8.8, Full Thd

4шт.

5

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

6

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

2шт.

7

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

8

47123636

HYD TUBE

1шт.

9

47124968

SEALING WASHER

D=27

2шт.

10

47124882

BANJO BOLT

M27X2X45

1шт.

11

47123635

HYD TUBE

1шт.

12

47123633

HYD TUBE

1шт.

13

5185525

HYD CONNECTOR,15.5 - M22 x 1.5 ORFS

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

16

47123621

RIGID TUBE

1шт.

17

47123623

HYD CONNECTOR

1шт.

18

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

14305921

HEX SOC SCREW,M6 x 45mm, Cl 8.8

3шт.

20

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

21

47129628

FLEXIBLE HOSE

1шт.

22

47123518

HYD CONNECTOR

on gear Pump (Upper)

1шт.

23

5105699

BANJO BOLT

M18X1,5X28

2шт.

24

47128782

VALVE PRESSURE RELIE

Incl. 25

1шт.

25

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

26

11903114

PLUG,M10 x 1.25 x 11

1шт.

27

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

Выбрано товаров: 27
