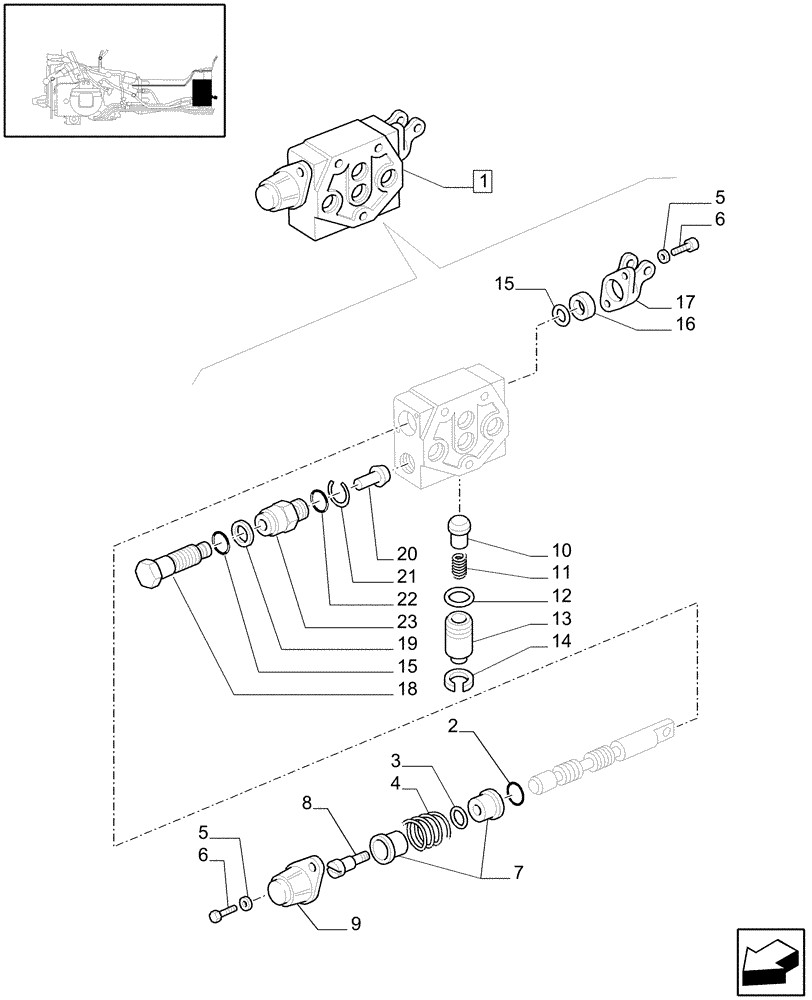

Запчасти Case IH JX90U (1.82.7/11C) - (VAR.386-389) TWO FRONT CONTROL VALVES - CONTROL VALVE PARTS - C4903 (07) - HYDRAULIC SYSTEM

1

5176801

CONTROL VALVE

1шт.

2

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

3

5116892

SHIM,10.4mm ID x 16mm OD x 1.5mm Thk

1шт.

4

5188565

SPRING,28mm OD x 46mm L

1шт.

5

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

6

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

4шт.

7

5116891

CUP,10.4mm ID x 27mm OD x 10mm Thk

2шт.

8

5116894

SCREW,1/4" - 20 x 7/8"

1шт.

9

5116895

COVER

1шт.

10

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

11

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

12

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

13

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

14

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

15

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

16

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

17

5116887

SUPPORT

1шт.

18

5136348

PIN,10mm OD x 37mm L

1шт.

19

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

20

5136347

PIN,3.8mm OD x 15mm L

1шт.

21

11087871

CIRCLIP,M7

1шт.

22

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

23

5136346

BODY,7/8" - 14

1шт.
