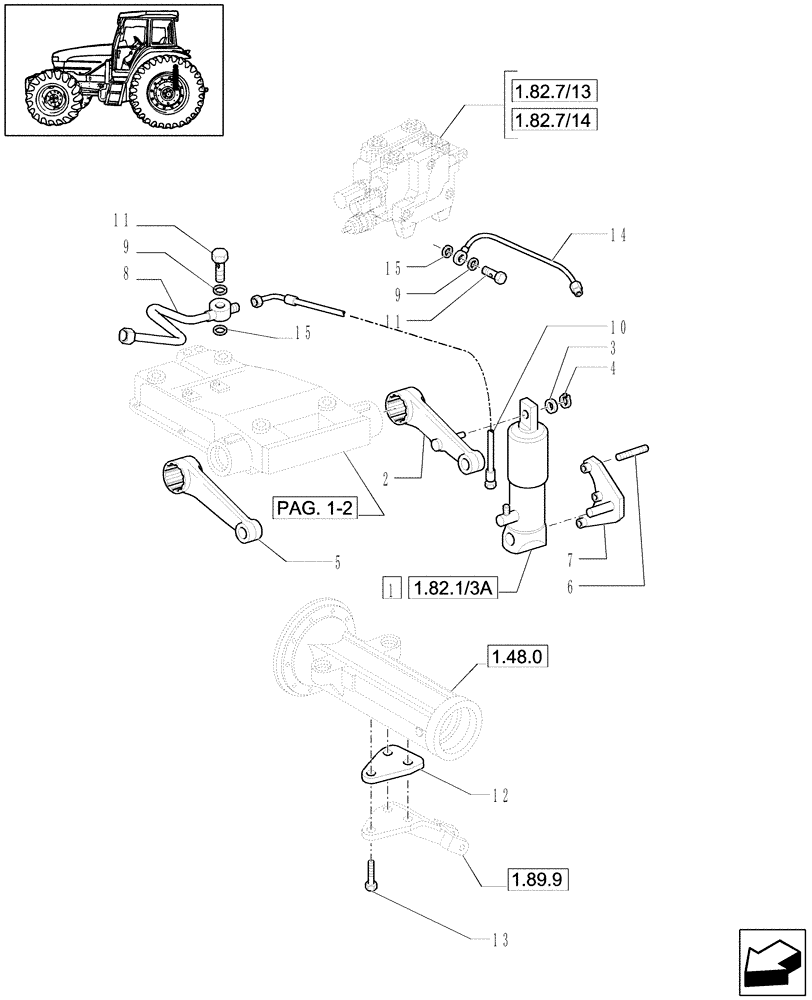

Запчасти Case IH JX90U (1.82.0/02[03]) - (VAR.832-836) ELECTRONIC LIFTING - PIPES, ARMS (07) - HYDRAULIC SYSTEM

1

5171357

HYDRAULIC CYLINDER

1шт.

1

5171357

HYDRAULIC CYLINDER

1шт.

1

5171357

HYDRAULIC CYLINDER

1шт.

2

5173542

LIFT ARM

RH

1шт.

3

44018747

WASHER,28mm ID x 40mm OD x 3mm Thk

D=8X40X3

1шт.

4

11067676

SNAP RING,M28, Ext

1шт.

5

5183052

LIFT ARM

LH

1шт.

6

5171503

STUD

3шт.

7

5182277

SUPPORT

RH

1шт.

8

47124313

HYD TUBE

1шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

2шт.

10

5183166

FLEXIBLE HOSE

9/16-18,M16x1,5

2шт.

11

5112588

BANJO BOLT,M22 x 1.5 x 40mm

2шт.

12

5199434

PLATE

2шт.

13

15984324

SCREW,Hex, M18 x 1.5 x 50mm, Cl 8.8, Full Thd

6шт.

14

47123661

HYD TUBE

1шт.

15

14454080

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

2шт.
