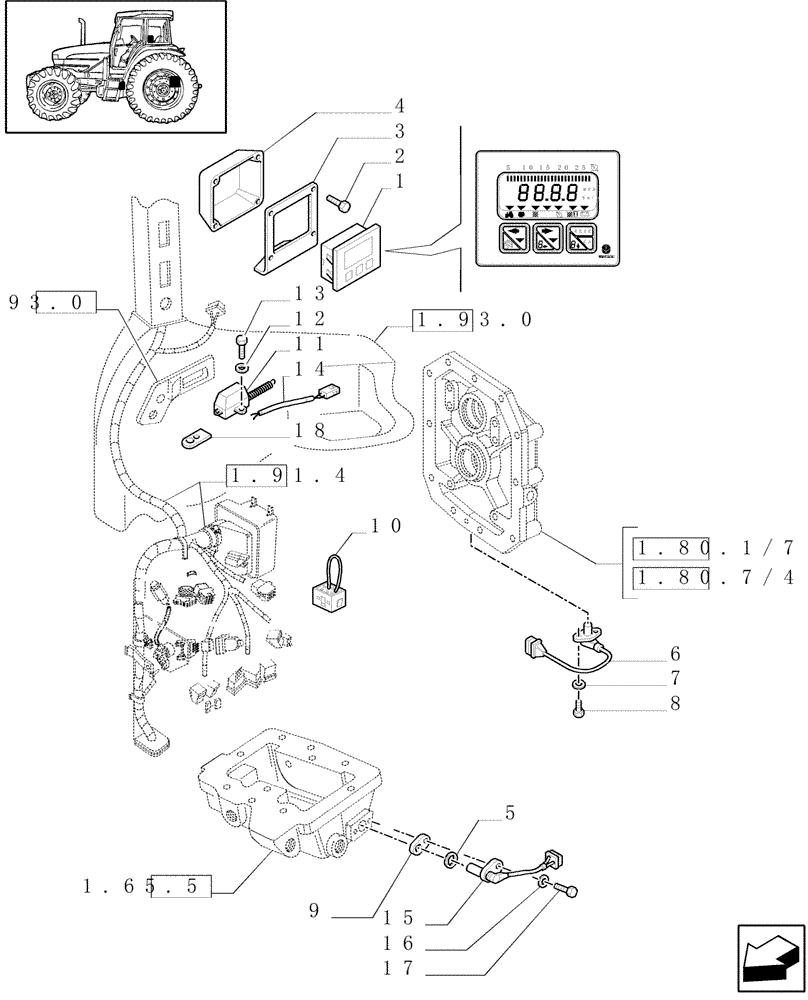

Запчасти Case IH JX90U (1.75.0/05) - (VAR.746/1) DIGITAL UNIT FOR HYDR. P.T.O. (POWER-SHUTTLE) (06) - ELECTRICAL SYSTEMS

1

47125844

INSTRUMENT CLUSTER

1шт.

2

15642504

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

4шт.

3

5174281

SUPPORT

1шт.

4

5170828

COVER

1шт.

5

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

5150991

SENSOR

PTO SPEED

1шт.

7

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

9

5165826

FLANGE

1шт.

10

5198983

BRIDGE

1шт.

11

5121786

LIGHT SWITCH

Stop Light

1шт.

12

80322355

WASHER

M4

2шт.

13

13272214

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

2шт.

14

5198899

WIRE HARNESS

1шт.

15

5162472

SENSOR

1шт.

16

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

1шт.

17

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

18

5167199

PLATE

1шт.
