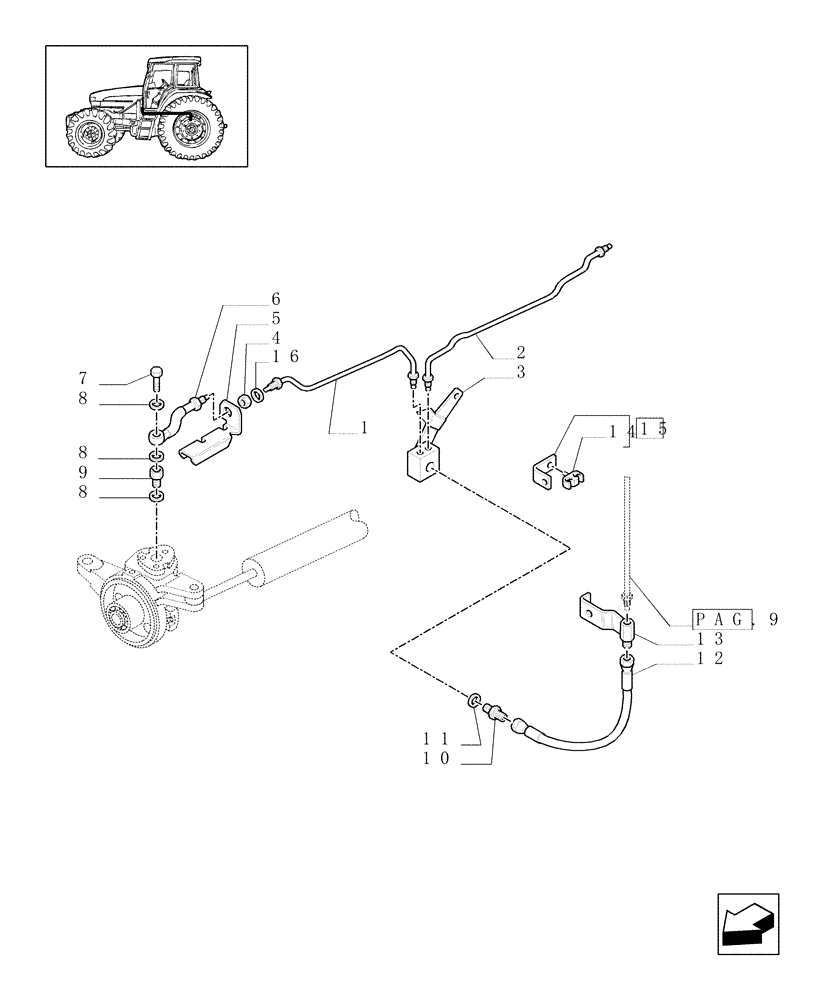

Запчасти Case IH JX90U (1.68.5/06[02]) - (VAR.327/1) ELECTROHYD. FRONT DIFFENTIAL LOCK, BRAKES AND MUDGUARDS - BRAKE PIPES (05) - REAR AXLE

1

5181504

TUBE

LH

1шт.

2

5181503

TUBE

RH

1шт.

3

5182324

BRACKET

1шт.

4

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

5

47123155

BRACKET

RH

1шт.

5

47123154

BRACKET

LH

1шт.

6

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

7

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

8

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X17X1.5

6шт.

9

5182367

HYD CONNECTOR

M12X1.25

2шт.

10

5182397

HYD CONNECTOR

1шт.

11

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

1шт.

12

5182381

HOSE

1шт.

13

5182325

BRACKET

1шт.

14

14575280

SPRING CLIP

1шт.

15

5182331

BRACKET

1шт.

16

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

4шт.
