(1.48.1/04) - (VAR.449) PADDY FIELD VERSION - SIDE REDUCTION GEAR BOX, SHAFT

Запчасти Case IH JX90U (1.48.1/04) - (VAR.449) PADDY FIELD VERSION - SIDE REDUCTION GEAR BOX, SHAFT (05) - REAR AXLE

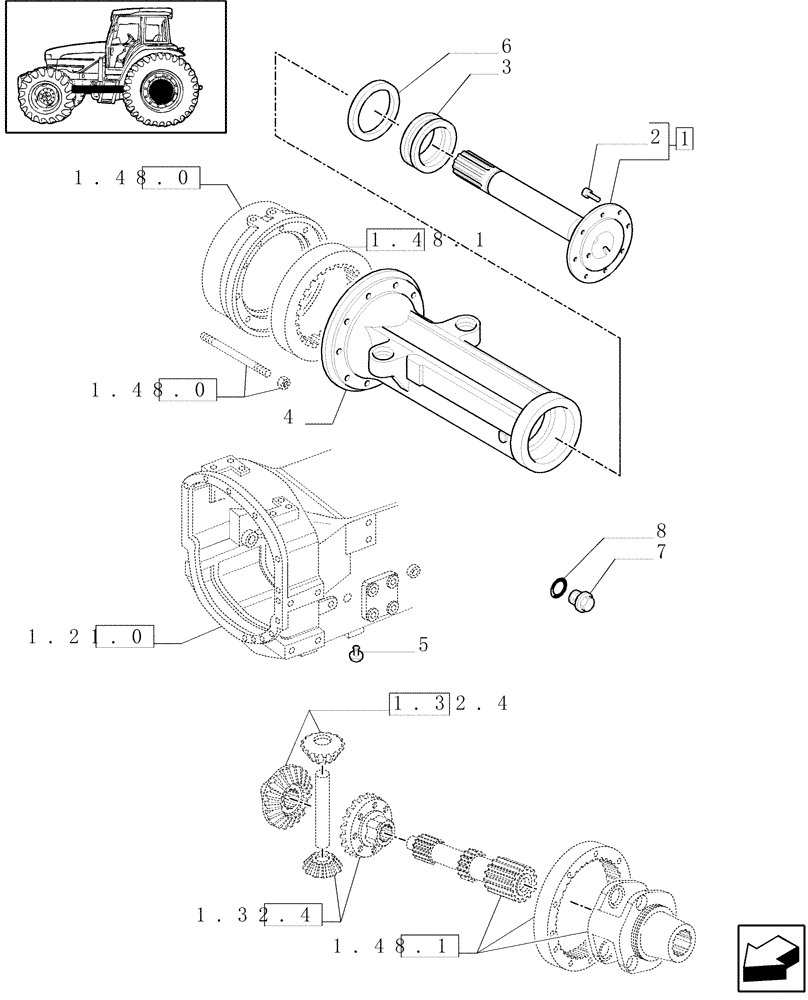

Схема запчастей Case IH JX90U - (1.48.1/04) - (VAR.449) PADDY FIELD VERSION - SIDE REDUCTION GEAR BOX, SHAFT (05) - REAR AXLE
3
1.21.0
1.48.0
1
8
1.48.1
6
1.48.0
1.32.4
5
7
2
1.48.1
4
1.32.4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5170162

AXLE

JX70U

2шт.

1

5170184

AXLE

JX100U

2шт.

1

5176067

AXLE

JX80U, JX90U

2шт.

2

44011089

WHEEL BOLT

M18X56

16шт.

3

5144973

SEAL,104mm ID x 135mm OD x 28mm Thk

104 x 135 x 28

2шт.

4

5170145

AXLE HOUSING

JX80U, JX90U

2шт.

4

5170160

AXLE HOUSING

JX70U

2шт.

4

5170183

AXLE HOUSING

JX100U

2шт.

5

5145574

PLUG,M7 X 12.5mm

D = 7

1шт.

6

5144972

RING,114mm ID x 134.5mm OD x 2.5mm Thk

JX80U, JX90U, JX100U

2шт.

7

5198705

PLUG

M20X2,5

4шт.

8

10261760

COPPER WASHER,20mm ID x 28mm OD x 1.5mm Thk

4шт.
