(1.48.1/02[01]) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - STEP-DOWN GEARING

Запчасти Case IH JX90U (1.48.1/02[01]) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - STEP-DOWN GEARING (05) - REAR AXLE

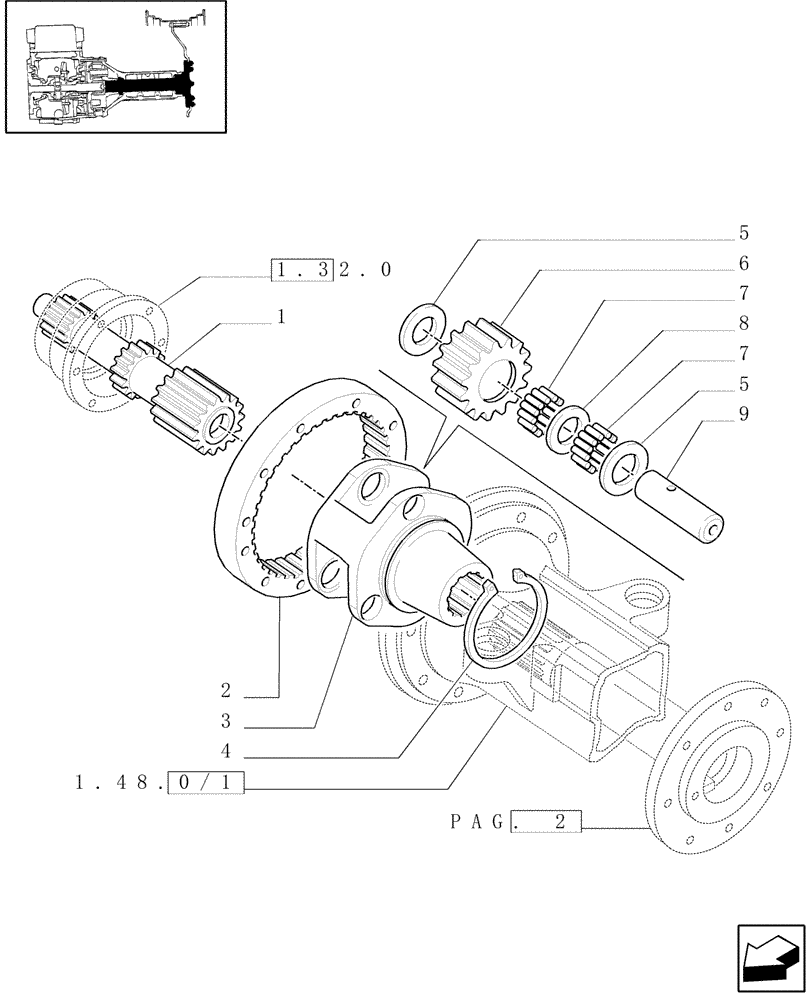

Схема запчастей Case IH JX90U - (1.48.1/02[01]) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - STEP-DOWN GEARING (05) - REAR AXLE
5
1
7
4
3
7
6
1.32.0
1.48.0/1
2
pag. 2
5
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5181721

HALF SHAFT

RH

1шт.

1

5181722

HALF SHAFT

LH

1шт.

2

5170096

RING GEAR

2шт.

3

5170104

PLANET CARRIER

Pinions

2шт.

4

5157726

CIRCLIP

2шт.

5

5157720

THRUST WASHER,40mm ID x 70mm OD x 1mm Thk

12шт.

6

5157671

PINION

6шт.

7

5157719

NEEDLE BEARING,40.15mm ID x 54.15mm OD x 26mm W

Roller/Taper, 40.15X54.15X26

6шт.

8

5157718

SPACER,42.5mm ID x 54.05mm OD x 4mm L

42.5 x 54.05 x 4

6шт.

9

5170095

PIN,40.15mm OD x 108mm L

6шт.
