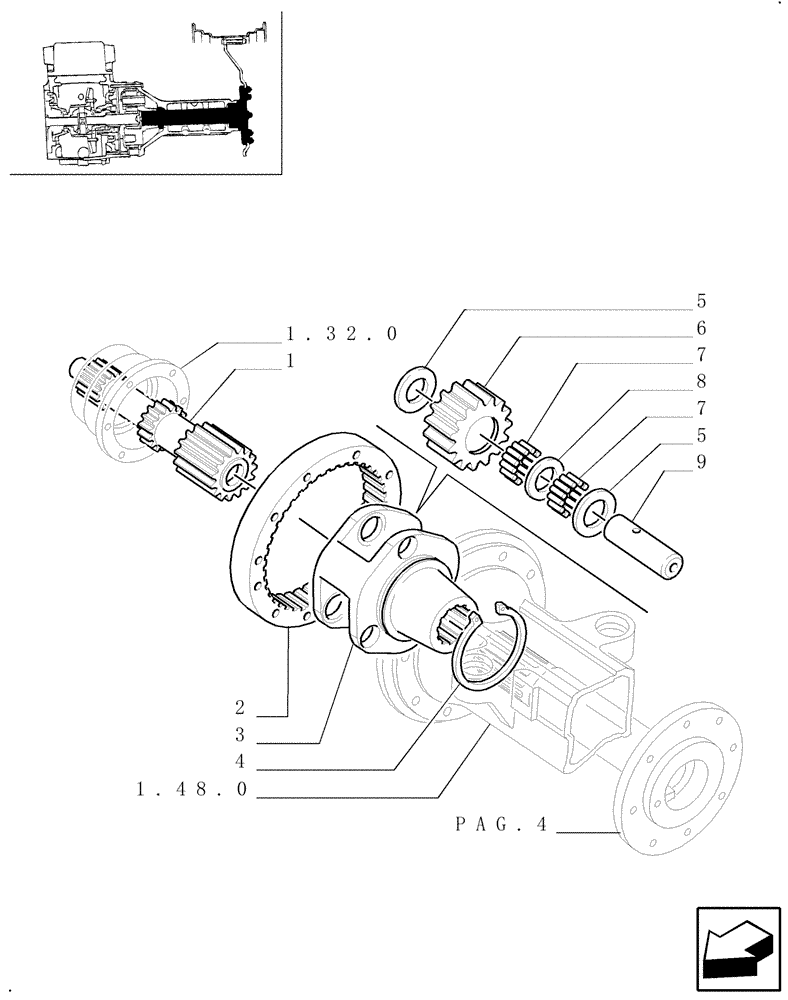

Запчасти Case IH JX90U (1.48.1[03]) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5125062

HALF SHAFT

RH

1шт.

1

5125063

HALF SHAFT

LH

1шт.

2

5125064

RING GEAR

2шт.

3

4998879

CARRIER

2шт.

4

4998883

CIRCLIP,112mm ID x 119mm OD

D = 119

2шт.

5

4997200

THRUST WASHER,35.8mm ID x 60mm OD x 1mm Thk

12шт.

6

5125065

PLANETARY GEAR,25T

6шт.

7

5101688

NEEDLE BEARING,35.7mm ID x 49.7mm OD x 21mm W

Roller/Taper

12шт.

8

4997217

SPACER,38mm ID x 49.6mm OD x 5mm L

38 x 49.5 x 5

6шт.

9

4997203

PIN,35.7mm OD x 98mm L

6шт.
