(1.48.0/01) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - SIDE REDUCTION GEARS

Запчасти Case IH JX90U (1.48.0/01) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - SIDE REDUCTION GEARS (05) - REAR AXLE

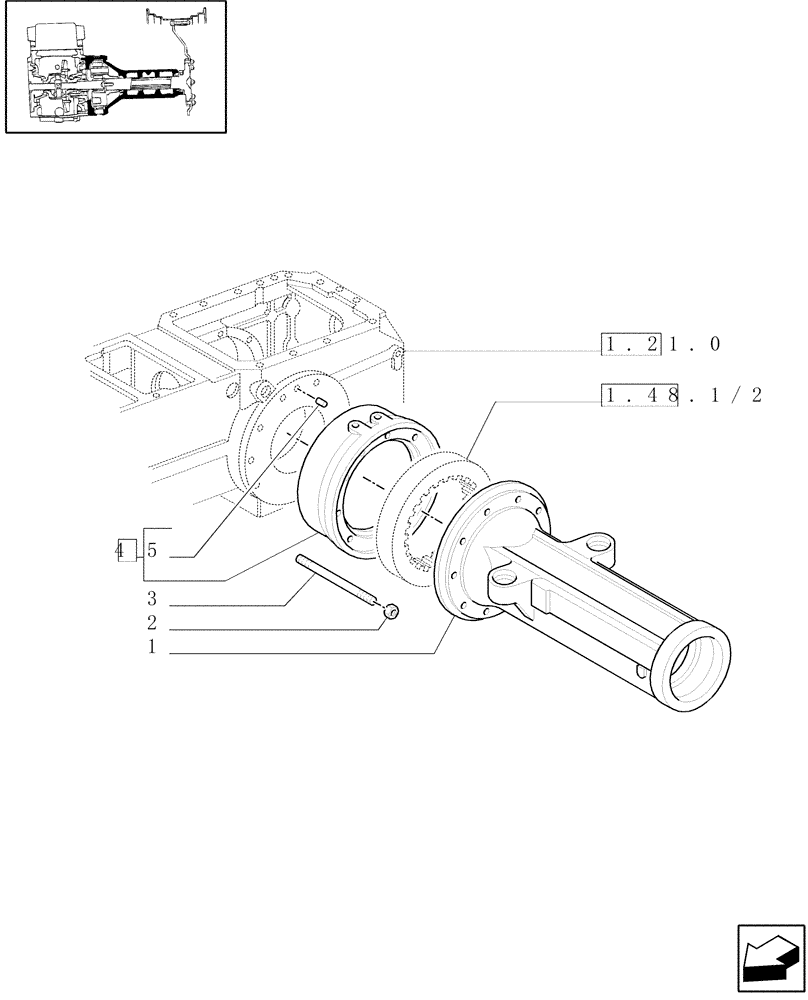

Схема запчастей Case IH JX90U - (1.48.0/01) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - SIDE REDUCTION GEARS (05) - REAR AXLE
1
5
3
4
2
1.48.1/2
1.21.0
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5170103

AXLE HOUSING

2шт.

2

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

20шт.

3

13557930

STUD,M14 x 1.5 x 20mm x 160mm, Cl 10.9

M14 x 160

2шт.

3

13558130

STUD

M14X1.5X183

18шт.

4

5170102

SPACER

2шт.

5

5110094

DOWEL,10mm OD x 19.5mm L

6шт.
