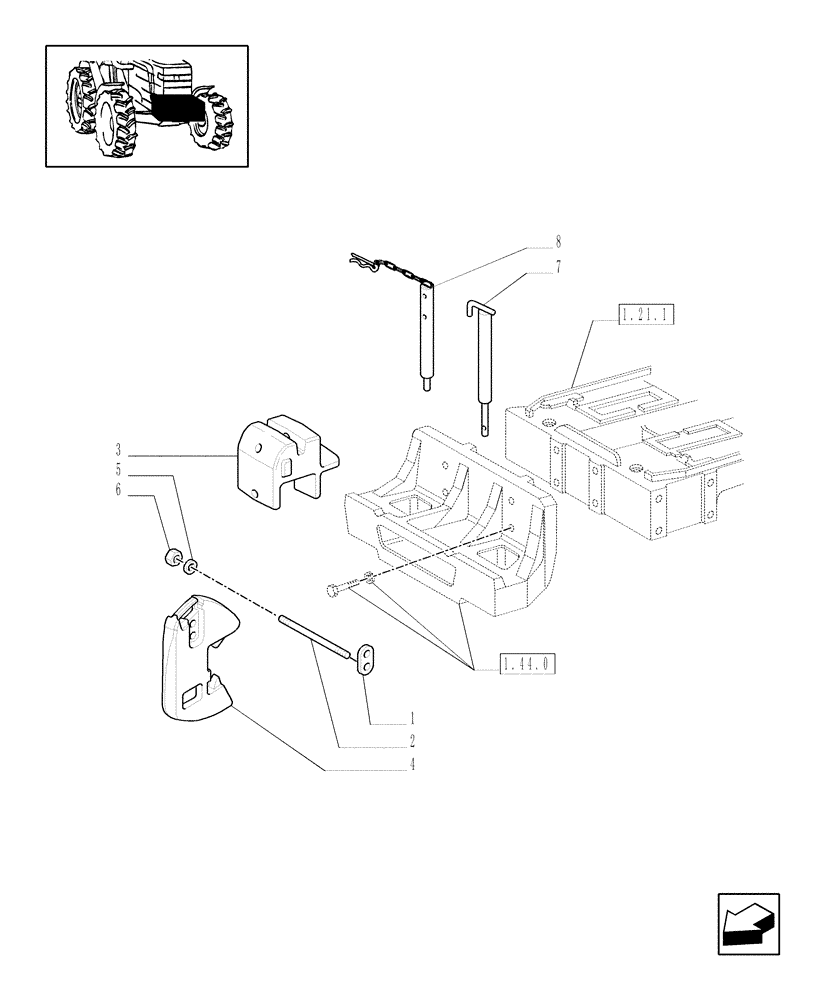

Запчасти Case IH JX90U (1.44.0/01) - (VAR.240-241-242-243) FRONT SUPPORT AND BALLAST (04) - FRONT AXLE & STEERING

1

229483A1

RETAINER

1шт.

2

82028306

THREADED ROD,M16 x 2 x 385mm L

M16X2, VAR.240-242

1шт.

2

82028019

ROD,M16 x 2 x 610.00mm, ZND

M16X2, VAR.241 - 243

1шт.

3

82024272

SUPPORT,110Kg

VAR.240 - 241

1шт.

4

82024273

WEIGHT

45KG/100LBS, VAR.240

2шт.

4

82024273

WEIGHT

45KG/100LBS, VAR.241 - 242

6шт.

4

82024273

WEIGHT

45KG/100LBS, VAR.243

10шт.

5

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

M16X40X5

1шт.

6

12163321

NUT,M16, Cl 10

1шт.

7

394086A1

CLEVIS PIN,31mm OD x 315mm L

, Serial Range: -1288942

1шт.

7

368197A1

CLEVIS PIN,31mm OD x 337mm L

, Serial Range: -1288942

1шт.

8

47128492

PIN,31.5mm OD x 612.6mm L

, Start Serial: 1288943

2шт.
