Запчасти Case IH JX90U (1.40.0/77) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - BOX AND PLANETARY GEAR (04) - FRONT AXLE & STEERING

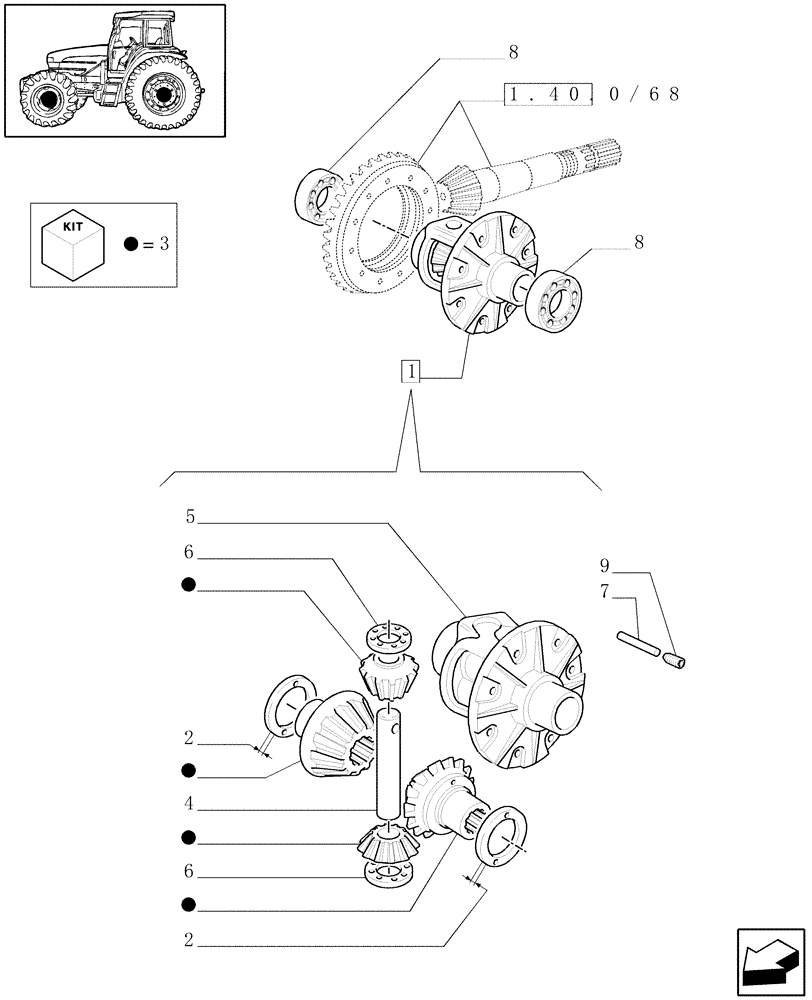

Схема запчастей Case IH JX90U - (1.40.0/77) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - BOX AND PLANETARY GEAR (04) - FRONT AXLE & STEERING
8
2
3
1
3
3
3
2
7
6
4
1.40.0/68
3
6
9
3
8
5

Артикул

Название

Примечание

Количество

1

5117219

HOUSING

1шт.

2

5148936

THRUST WASHER,44mm ID x 66mm OD x 1.6mm Thk

1шт.

2

5148937

THRUST WASHER,44mm ID x 66mm OD x 1.8mm Thk

1шт.

2

5148938

THRUST WASHER,44mm ID x 66mm OD x 1.7mm Thk

1шт.

2

5148939

THRUST WASHER,44mm ID x 66mm OD x 1.5mm Thk

1шт.

2

5148940

THRUST WASHER,44mm ID x 66mm OD x 1.4mm Thk

1шт.

2

5167387

THRUST WASHER,44mm ID x 66mm OD x 1.9mm Thk

1шт.

2

5167388

THRUST WASHER,44mm ID x 66mm OD x 2mm Thk

1шт.

2

5181356

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.1mm T

1шт.

2

5181357

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.2mm T

1шт.

3

1930125

KIT

1шт.

4

5148935

PIN,24mm OD x 144mm L

1шт.

5

5174844

HOUSING

1шт.

6

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

7

5173242

ROLL PIN,6.5mm OD x 61mm L

61.5X6.5

1шт.

8

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

60X95X23

2шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

Выбрано товаров: 17
