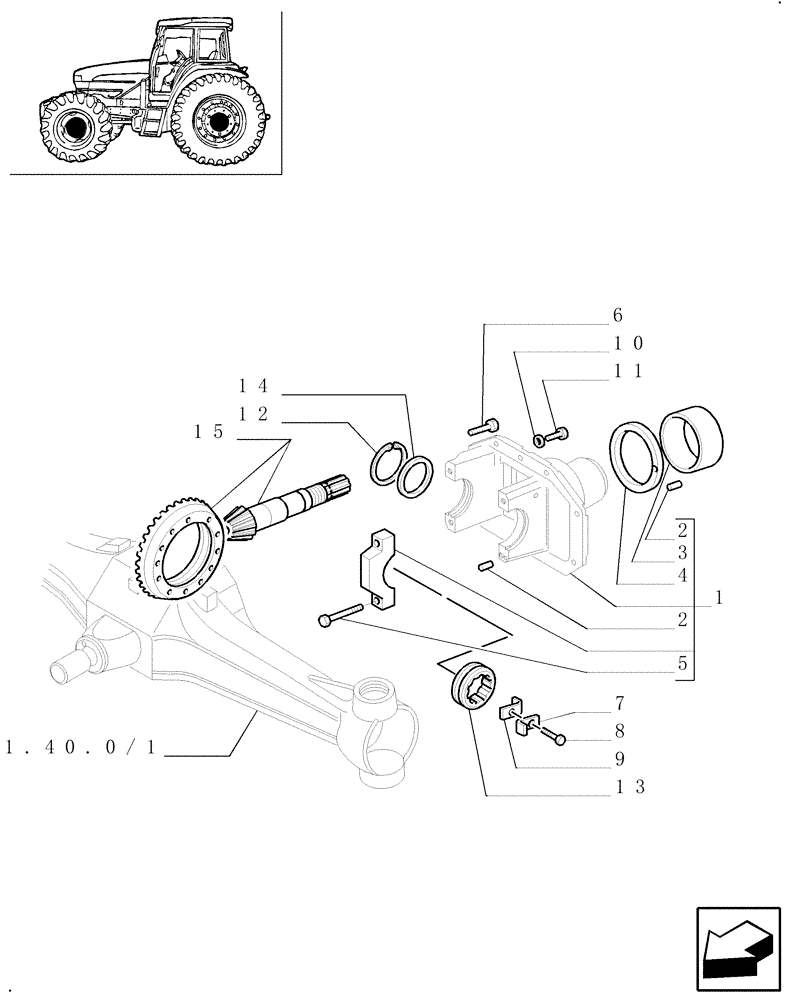

Запчасти Case IH JX90U (1.40.0/47[01]) - (VAR.406) FRONT AXIS, 40KM/H HYDR. DIFF. LOCK - BEVEL GEAR PAIR AND SUPPORT (04) - FRONT AXLE & STEERING

1

5153612

CARRIER,Bevel Gear

1шт.

2

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

3

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

90 x 99 x 72

1шт.

4

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90 x 136 x 5

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

10шт.

7

562659

PLATE

2шт.

8

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

4996751

PLATE

1шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

11

10305171

PLUG,M22 x 1.5 x 21

1шт.

12

11062676

SNAP RING,M95, Int

1шт.

13

4996750

RING NUT,M100 x 2

M100X13

1шт.

14

5141460

SHIM,83mm ID x 94.9mm OD x 0.9mm Thk

1шт.

14

5141461

SHIM,83mm ID x 94.9mm OD x 1mm Thk

1шт.

14

5141462

SHIM,83mm ID x 94.9mm OD x 1.1mm Thk

1шт.

14

5141463

SHIM,83mm ID x 94.9mm OD x 1.2mm Thk

1шт.

14

5141464

SHIM,83mm ID x 94.9mm OD x 1.3mm Thk

1шт.

14

5141465

SHIM,83mm ID x 94.9mm OD x 1.4mm Thk

1шт.

14

5141466

SHIM,83mm ID x 94.9mm OD x 1.5mm Thk

1шт.

14

5141467

SHIM,83.00mm ID x 94.50mm OD x 1.60mm T

1шт.

14

5141468

SHIM,83mm ID x 94.9mm OD x 1.7mm Thk

1шт.

14

5141469

SHIM,83mm ID x 94.9mm OD x 1.8mm Thk

1шт.

15

5142023

GEAR SET

Front, R.9/39

1шт.
