(1.32.0/01) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - BOXES AND SUPPORTS

Запчасти Case IH JX90U (1.32.0/01) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - BOXES AND SUPPORTS (03) - TRANSMISSION

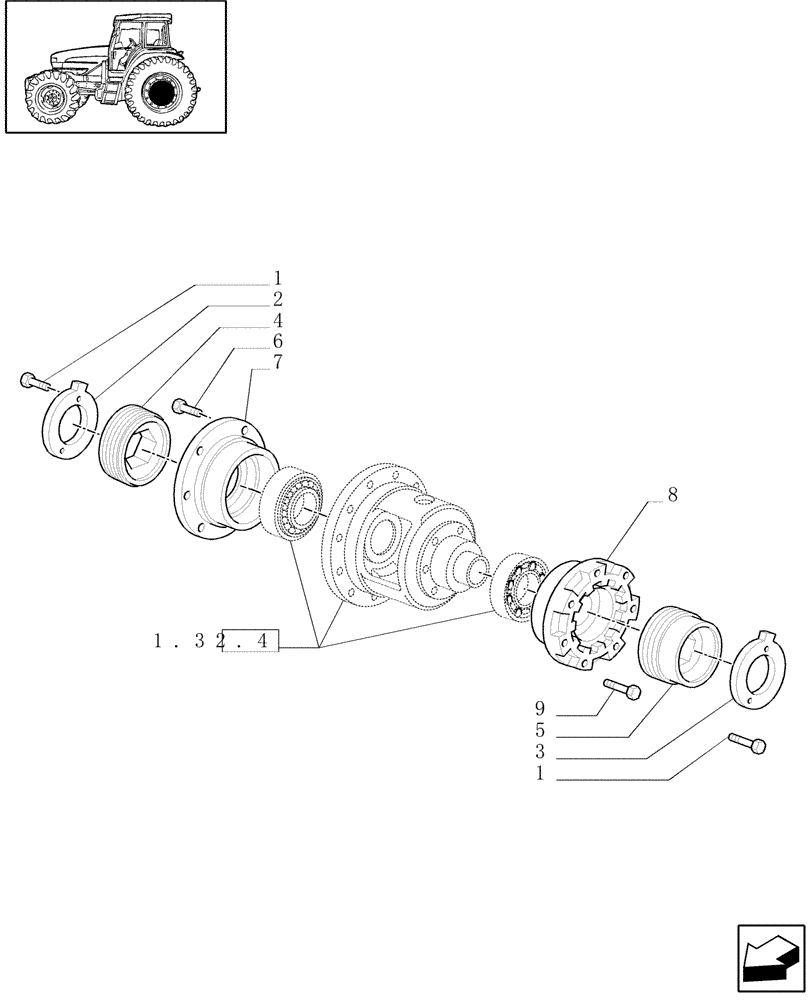

Схема запчастей Case IH JX90U - (1.32.0/01) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - BOXES AND SUPPORTS (03) - TRANSMISSION
1
8
1
1.32.4
4
6
5
7
3
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

2

5198101

NUT

1шт.

3

5127164

LOCKING RING

1шт.

4

5198105

LOCK NUT

RH

1шт.

5

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

6

14234021

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8

M1X1.25X50

6шт.

7

5181270

SUPPORT

RH

1шт.

8

5181269

SUPPORT

LH

1шт.

9

14233721

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.
