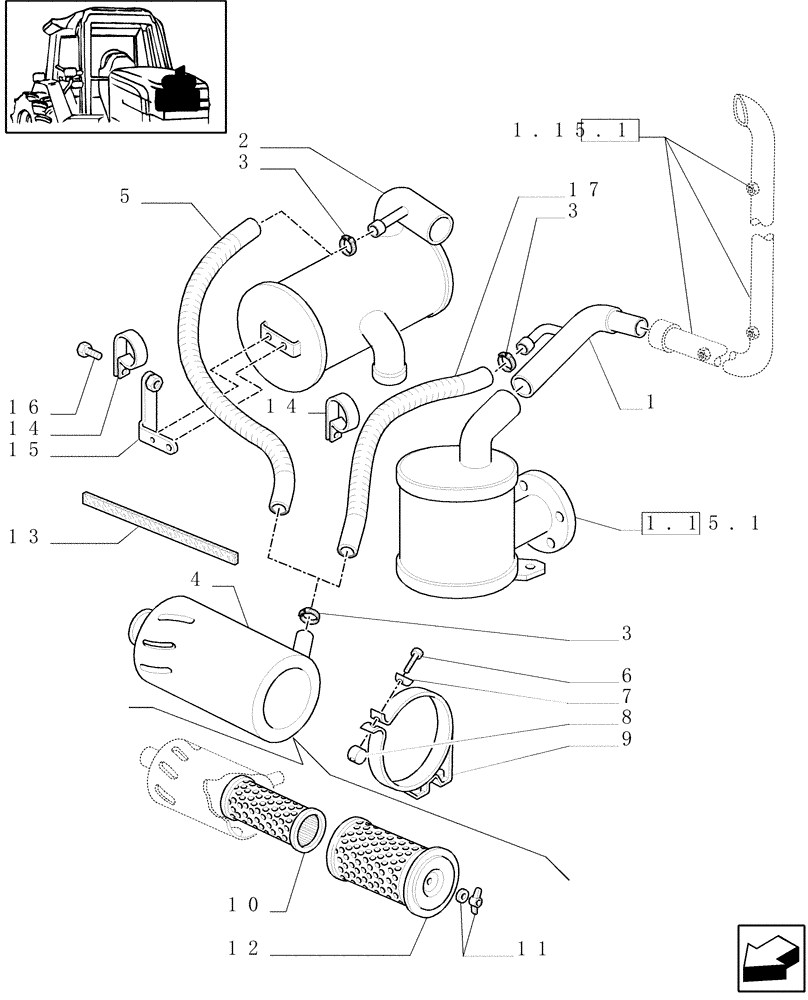

Запчасти Case IH JX80U (1.15.1/01[01]) - (VAR.199) SELF-CLEANING FILTER (WITH CAB) (02) - ENGINE EQUIPMENT

1

5196930

RIGID TUBE

JX90U, JX100U

1шт.

2

5183208

MUFFLER

JX70U, JX80U

1шт.

3

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

D = 32-50

2шт.

4

5163029

AIR CLEANER

DONALDSON, JX70U, JX80U

1шт.

4

5165665

AIR CLEANER

DONALDSON, JX90U, JX100U, 203mm OD x 349mm L

1шт.

5

5183207

HOSE,32mm ID x 960mm L

JX70U, JX80U

1шт.

6

5120756

SCREW

M8 x 1.25 x 65

1шт.

7

5120754

PIN

M8X1.25

1шт.

8

5120755

PIN,16mm OD x 15mm L

1шт.

9

5168072

BRACKET

JX90U, JX100U

1шт.

9

5169713

SUPPORT

JX70U, JX80U

1шт.

10

1931164

AIR FILTER

JX70U, JX80U

1шт.

Valid with JX70U Model

1шт.

10

1931169

AIR FILTER

JX90U, JX100U

1шт.

11

79062701

NUT

1шт.

12

1931166

AIR FILTER

JX70U, JX80U

1шт.

12

1931168

AIR FILTER

JX90U, JX100U

1шт.

Valid with JX90U Model

1шт.

13

5124593

GASKET

L = 100

1шт.

14

5183409

HOSE CLIP

1шт.

15

5183522

BRACKET

JX70U, JX80U

1шт.

16

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

17

5183408

HOSE,32.00 mm ID x 750.00 mm

JX90U, JX100U

1шт.
