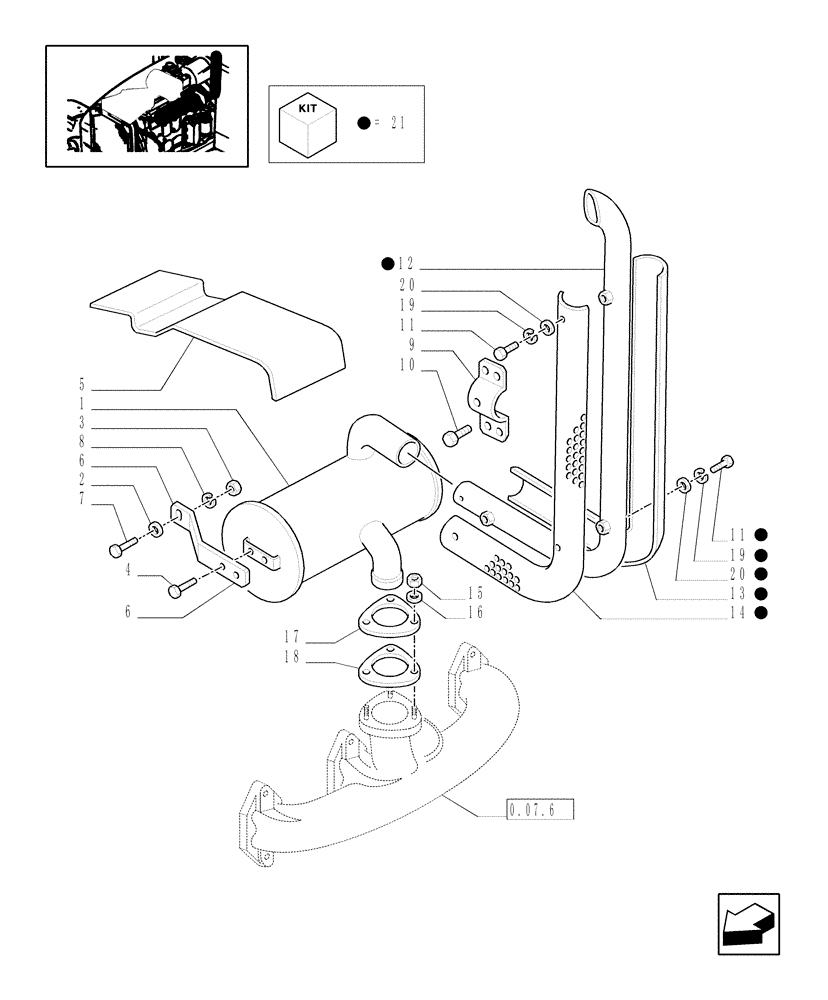

Запчасти Case IH JX80U (1.15.1[01]) - MUFFLER - W/CAB - GUARDS (02) - ENGINE EQUIPMENT

1

5182590

MUFFLER

1шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

3

12164714

NUT,M10 x 1.25, Cl 8

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

5170155

GUARD

1шт.

6

5182587

BRACKET

1шт.

7

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

8

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

1шт.

9

47124268

HOSE CLIP

1шт.

10

14306230

SCREW,M8 x 1.25 x 16mm

2шт.

11

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

6шт.

12

5182537

RIGID TUBE

1шт.

13

5182539

SHIELD

1шт.

14

5182538

SHIELD

1шт.

15

5118186

FLANGE NUT

M8X1.25

3шт.

16

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

17

5178726

FLANGE

1шт.

18

5152380

GASKET,0.2mm Thk

1шт.

19

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

6шт.

20

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6шт.

21

47125296

EXHAUST SYSTEM PIPE

1шт.
