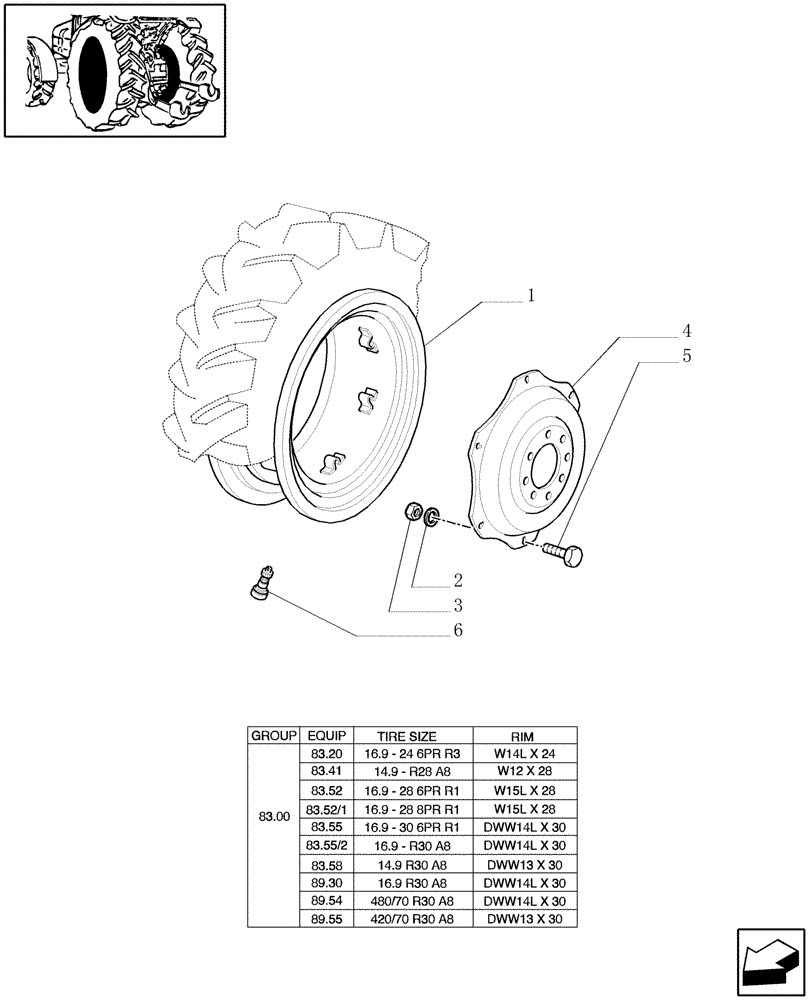

Запчасти Case IH JX80U (83.00[01]) - RIM (DRIVE WHEELS) (11) - WHEELS/TRACKS

1

47128178

RIM

W12 X 28, JX70U, 2WD

2шт.

1

47128179

RIM,W15L x 28, 6 Bolts, CASE Silver

W15L - 28, JX70U

2шт.

1

47128181

RIM,DWW14L x 30, 6 Bolts, CASE Silver

DWW 14L X 30

2шт.

1

47128180

RIM,766.8mm Dia x 330.2mm W, 6 Bolts, CASE Silver

DWW13X30, JX70U

2шт.

1

47128191

RIM

W14LX24,JX70U, JX80U

2шт.

2

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

14X32X3.4, JX70U, JX80U

12шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

12шт.

3

10790524

NUT,M16 x 1.5

12шт.

4

47128166

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

2шт.

DIA.INSIDE mm.616

1шт.

4

47128172

DISC

FOR RIM W14LX24, JX70U, JX80U

2шт.

DIA.INSIDE mm.515

1шт.

5

4959999

BOLT,M14 x 1.5 x 35mm

M14X35, W14L-24, JX70U, JX80U

12шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

12шт.

6

85700224

VALVE STEM

2шт.
