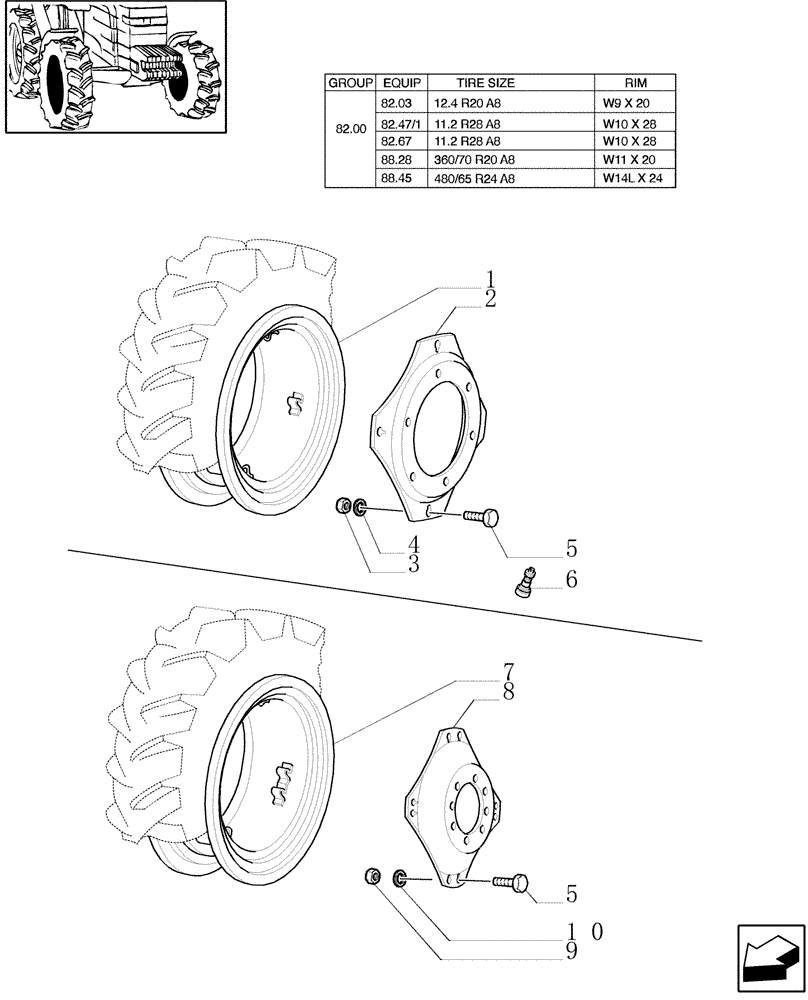

Запчасти Case IH JX80U (82.00[04]) - DRIVE WHEEL RIM (4WD) (11) - WHEELS/TRACKS

1

47128194

RIM

W9 x 20

2шт.

1

47128193

RIM

W11 x 20, JX70U

2шт.

2

47128173

WHEEL DISC

JX70U

2шт.

3

10790524

NUT,M16 x 1.5

6шт.

4

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6 x 33 x 6

6шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

6шт.

6

85700224

VALVE STEM

2шт.

7

47128185

RIM,W10 x 28, 8 Bolts, CASE Silver

W10 X 28

2шт.

7

47128190

RIM,W14Lx24, 8 Bolts, Case IH Silver

W14L X 24

2шт.

8

47128169

WHEEL DISC,616mm Dia, 8 Bolts , Case IH Silver

JX80U, JX90U, JX100U

2шт.

8

47128164

WHEEL DISC

JX90U, JX100U

2шт.

9

10790524

NUT,M16 x 1.5

16шт.

10

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6 x 33 x 6, JX90U, JX100U

16шт.

10

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5, JX80U, JX90U, JX100U

16шт.
