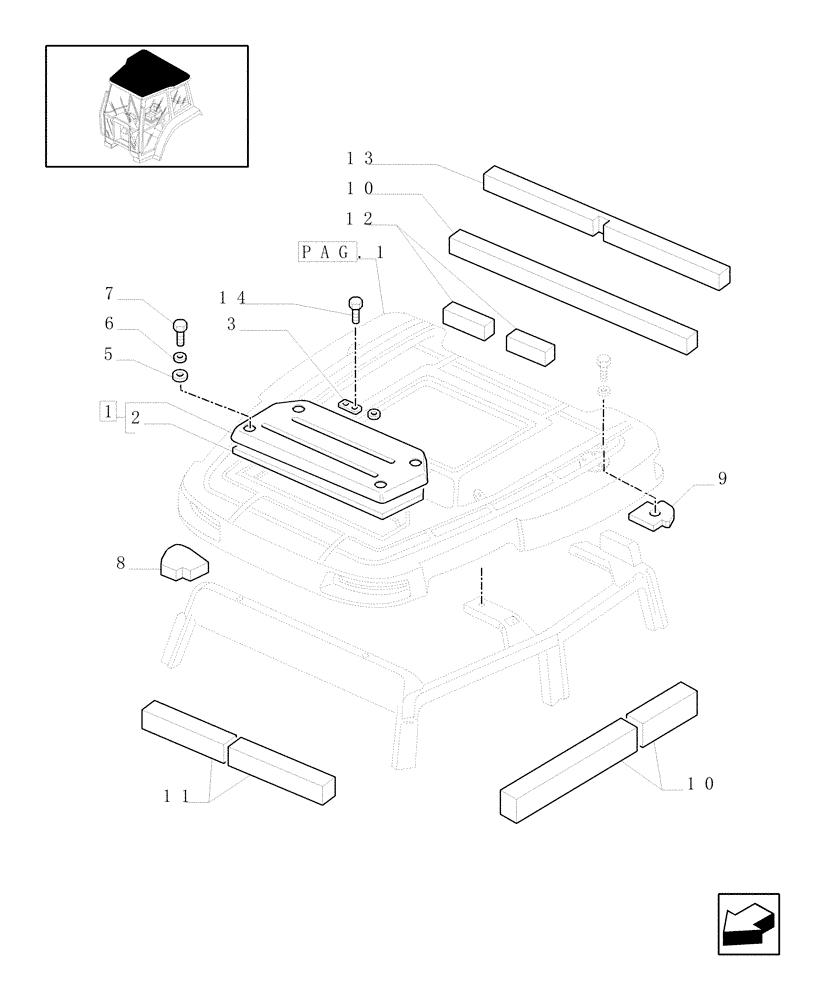

Запчасти Case IH JX80U (1.94.0[02]) - CAB - ROOF & PARTS (10) - OPERATORS PLATFORM/CAB

1

47124468

HATCH

1шт.

2

5175456

SEAL

1шт.

3

5177435

SEAL

2шт.

4

4986961

WASHER,17mm ID x 37mm OD x 5mm Thk

37X17X5

4шт.

5

5177577

SEALING WASHER,5mm ID x 22mm OD x 3mm Thk

6шт.

6

12647704

WASHER,6.15mm ID x 21mm OD x 1mm Thk

4шт.

7

80338413

SCREW

M6X40

4шт.

8

5192085

FOAM INSULATION

RH

1шт.

8

5192086

INSULATION

LH

1шт.

9

5192087

INSULATOR

LH

1шт.

9

5192088

INSULATOR

RH

1шт.

10

5192083

SEAL,1290mm L

25X30X1296

2шт.

11

5192082

SEALING STRIP

, Start Serial: D5382

1шт.

11

47125397

FOAM INSULATION,30mm W x 1010mm L x 25mm Thk

25X30X1010, Serial Range: -C5382

1шт.

12

5192084

INSULATOR

25X30X60

2шт.

13

5192081

FOAM INSULATION,30mm W x 1290mm L x 25mm Thk

25X30X1290

1шт.

14

16044921

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

1шт.

14

16045124

BOLT,Hex, M8 x 1.25 x 95mm, Cl 8.8

1шт.
