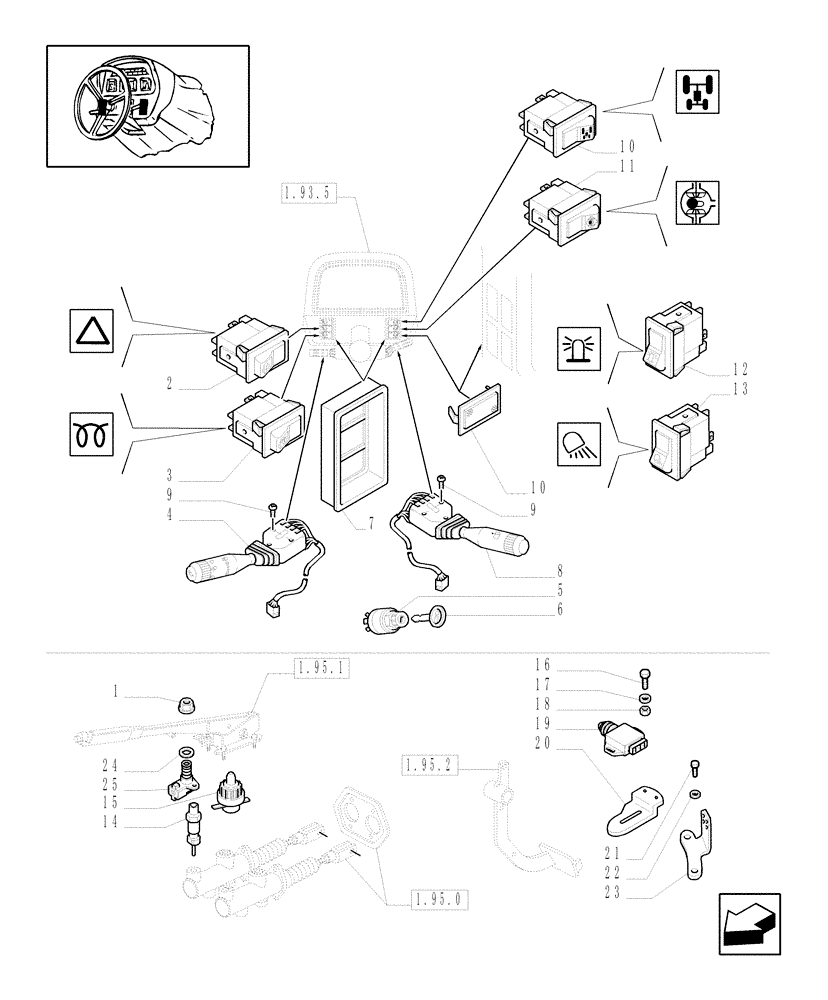

Запчасти Case IH JX80U (1.91.0) - ELECTRIC SYSTEM - SWITCHES & CONTROLS (10) - OPERATORS PLATFORM/CAB

2

5145664

FLASHER SWITCH

HAZARD

1шт.

1

5198051

NUT

1шт.

2

5197918

FLASHER SWITCH

VAR.007-007/1

1шт.

3

5145667

PUSH BUTTON

THERMOSTARTER

1шт.

4

5198383

LIGHT SWITCH

1шт.

5

47124203

IGNITION SWITCH

1шт.

6

47126500

IGNITION KEY

1шт.

7

5171860

CAPPING

2шт.

8

47123349

WINDSHIELD WIPER SWI

W/Cab

1шт.

9

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

w/Cab

6шт.

10

5165812

SWITCH

4WD, W/Cab

1шт.

10

5179105

TOGGLE SWITCH

4WD, L/Cab

1шт.

10

5166218

PLUG,Switch

1шт.

11

5180557

DIFF LOCK SWITCH

DIFF.LOCK

1шт.

12

5165813

BEACON SWITCH

ROTARY BEACON

1шт.

13

5199230

LIGHT SWITCH

REAR WORK LAMPS, W/CAB

1шт.

13

5199521

LIGHT SWITCH

REAR WORK LAMPS, VAR.007-007/1, W/CAB

1шт.

13

5199229

LIGHT SWITCH

FRONT WORK LAMPS, W/CAB

1шт.

14

5190018

PRESSURE SWITCH

Pressure (N.C.)

2шт.

15

5131017

PARK BRAKE SWITCH

HAND BRAKE, Serial Range: -1305008

1шт.

16

13272214

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

6шт.

17

80322355

WASHER

6шт.

18

10794014

NUT,M4, Cl 8

4шт.

19

82026949

PUSH BUTTON SWITCH

Brake

2шт.

20

47124373

BRACKET

1шт.

21

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

22

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

23

5182316

BRACKET

4WD

1шт.

23

5182315

BRACKET

2WD

1шт.

24

47129277

SPACER

, Start Serial: 1305009

1шт.

25

5195039

SWITCH

Hand Brake, Start Serial: 1305009

1шт.
