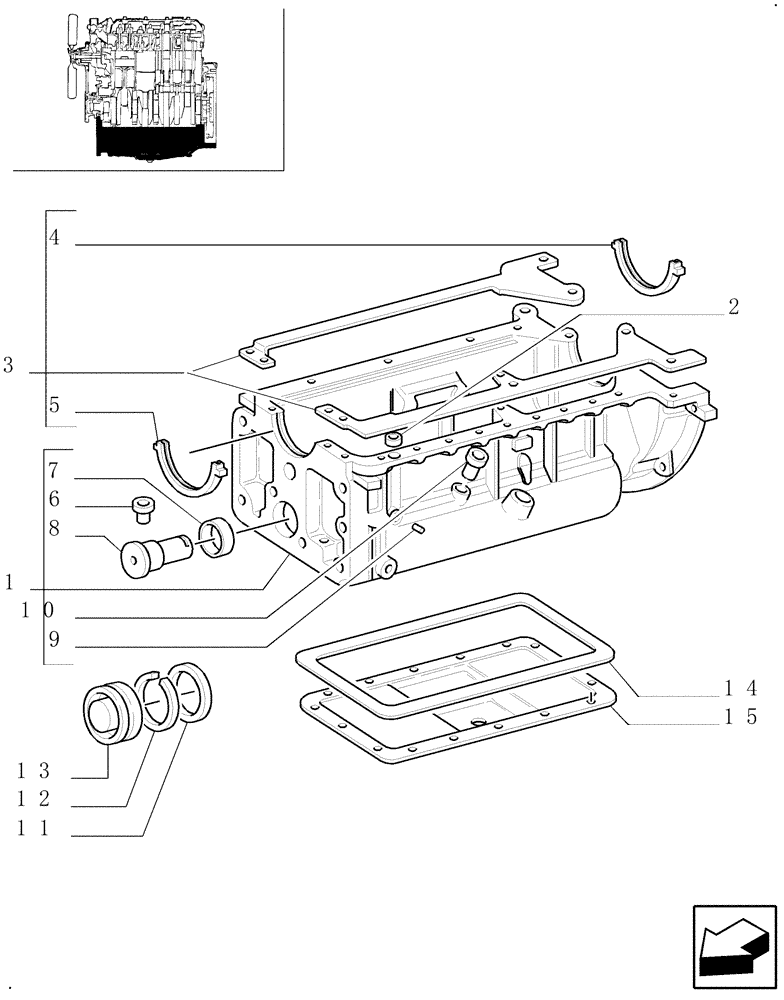

Запчасти Case IH JX80U (0.04.2[01]) - OIL SUMP (01) - ENGINE

1

504051146

ENGINE OIL PAN

JX70U, JX80U

1шт.

1

504051148

ENGINE OIL PAN

JX90U, JX100U

1шт.

2

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

3

1940004

OIL PAN GASKET SET

JX70U, JX80U

1шт.

3

1940143

OIL PAN GASKET SET

JX90U, JX100U

1шт.

4

4600753

SEAL

Rear

1шт.

5

4031577

SEAL,10mm Thk

Front

1шт.

6

4749132

TUBE

1шт.

7

4812465

BUSHING

2шт.

8

4812930

PIN,44mm OD x 79mm L

1шт.

9

99434231

PLUG

M10 x 1.25

1шт.

10

4694949

TUBE

1шт.

11

14464881

O-RING,2.484" ID x 2.762" OD x 0.139"

1шт.

12

11061576

SNAP RING,M72, Int

Int., M72

1шт.

13

4812554

PLUG

1шт.

14

99439562

GASKET

1шт.

15

99439348

COVER

1шт.
