Запчасти Case IH JX80U (1.82.713/04[01]) - (VAR.414) TRAILER BRAKE VALVE BOSCH - PARTS (07) - HYDRAULIC SYSTEM

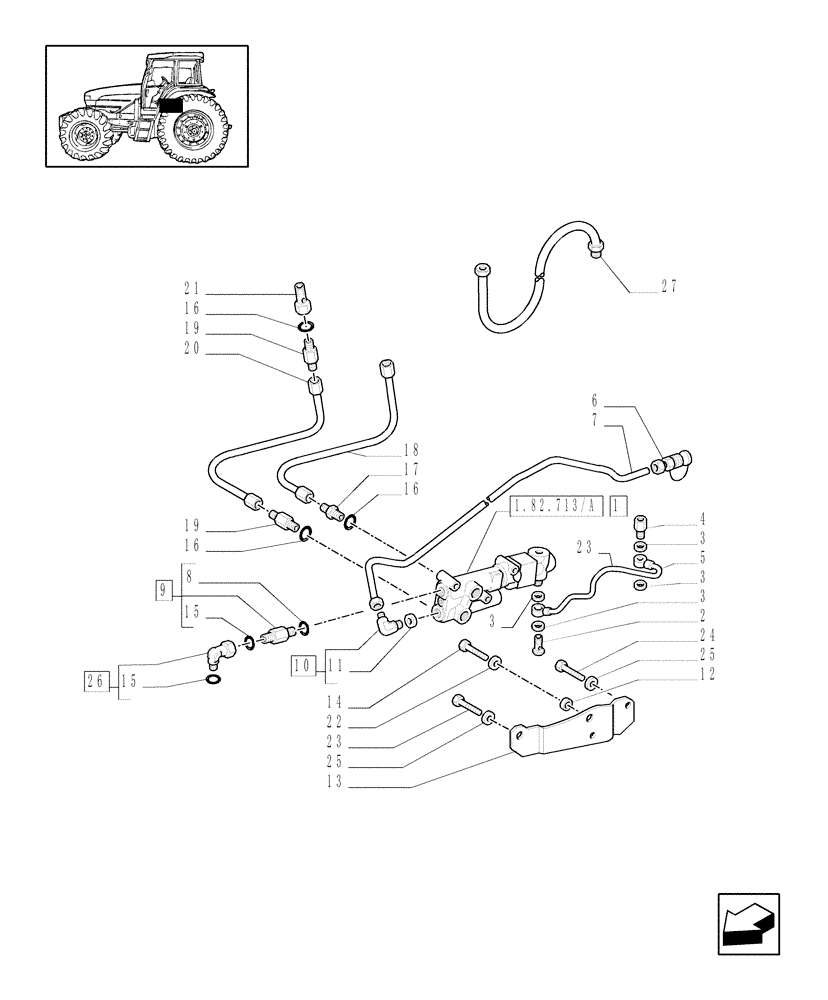

Схема запчастей Case IH JX80U - (1.82.713/04[01]) - (VAR.414) TRAILER BRAKE VALVE BOSCH - PARTS (07) - HYDRAULIC SYSTEM
19
3
2
21
3
11
19
22
20
9
4
6
16
18
25
27
24
25
8
10
23
16
26
14
23
15
1
13
3
3
17
7
5
1.82.713/a
16
15
12

Артикул

Название

Примечание

Количество

1

5165720

TRAILER BRAKE VALVE

1шт.

2

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X18X15

4шт.

4

5113983

BANJO BOLT,Hex, M12 x 1,25 x 44mm L

1шт.

5

47124964

HYD TUBE

1шт.

6

44015354

QUICK MALE COUPLING

1шт.

7

47123648

HYD TUBE

1шт.

8

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

15.7 x 20.9 x 1.5

1шт.

9

5191985

HYD CONNECTOR

1шт.

10

5156839

90 ELBOW

3/4-16 M18X1.5

1шт.

11

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

12

5157548

SPACER,8.5mm ID x 18mm OD x 14mm L

1шт.

13

5157573

SUPPORT

1шт.

14

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

1шт.

14

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

15

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

3шт.

17

5155665

HYD CONNECTOR

1шт.

18

47123646

HYD TUBE

1шт.

19

5162919

EXTENSION

2шт.

20

47123647

HYD TUBE

1шт.

21

47124961

BANJO BOLT

1шт.

22

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

23

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

24

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

25

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

26

5196553

ELBOW

1 13/16"

1шт.

27

47123633

HYD TUBE

1шт.

Выбрано товаров: 28
