(1.82.7/12) - (VAR.401-402) LOCK VALVE FOR BOSCH CONTROL VALVE - PIPES AND SOLENOID VALVE

Запчасти Case IH JX80U (1.82.7/12) - (VAR.401-402) LOCK VALVE FOR BOSCH CONTROL VALVE - PIPES AND SOLENOID VALVE (07) - HYDRAULIC SYSTEM

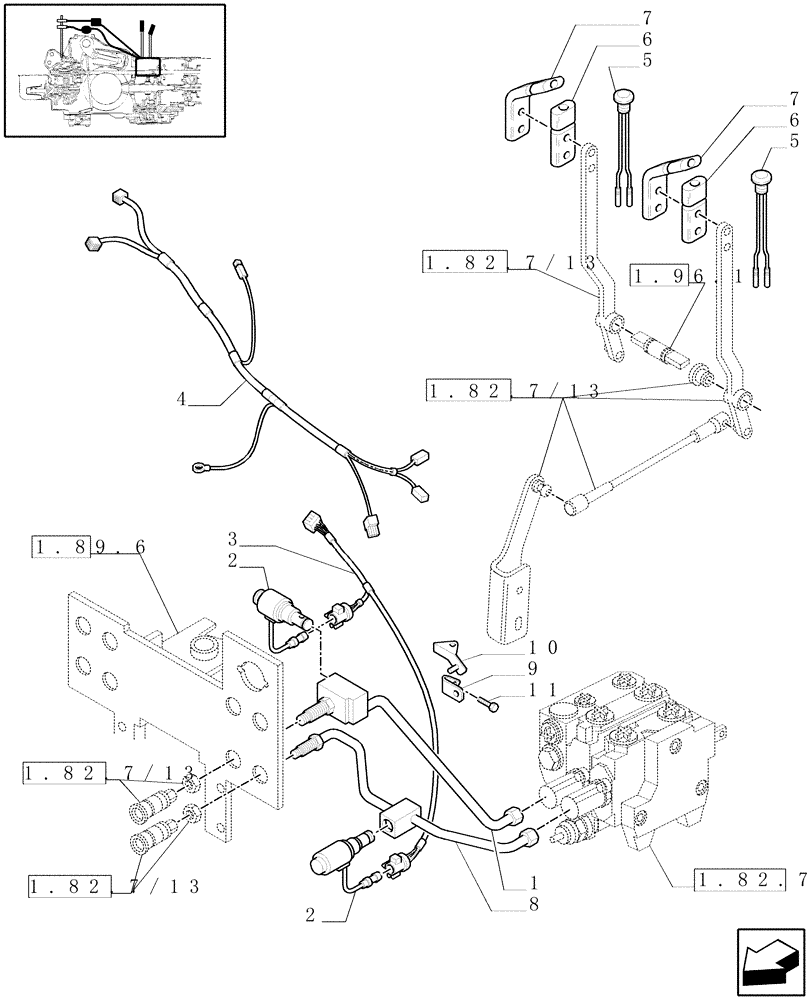

Схема запчастей Case IH JX80U - (1.82.7/12) - (VAR.401-402) LOCK VALVE FOR BOSCH CONTROL VALVE - PIPES AND SOLENOID VALVE (07) - HYDRAULIC SYSTEM
1.82.7/13
1.82.7/13
7
11
6
10
8
1.89.6
2
5
3
1.82.7/13
5
1
6
7
4
2
1.82.7/13
1.96.1
1.82.7/13
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5182140

RIGID TUBE

Equip. 401

1шт.

2

82013144

ELECTRO-VALVE

1шт.

3

5185314

ELECTRIC CABLE

1шт.

4

5185313

ELECTRIC CABLE

1шт.

5

5175645

SWITCH

1шт.

6

5184982

KNOB

W/CAB

1шт.

7

5184983

KNOB

L/CAB

1шт.

8

5182144

RIGID TUBE

Equip. 402

1шт.

9

5182577

BRACKET

Equip. 402, W/Mechanical Lift

1шт.

10

5182145

BRACKET

Equip. 402, W/Electronic Lift

1шт.

11

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

1шт.

Выбрано товаров: 11
