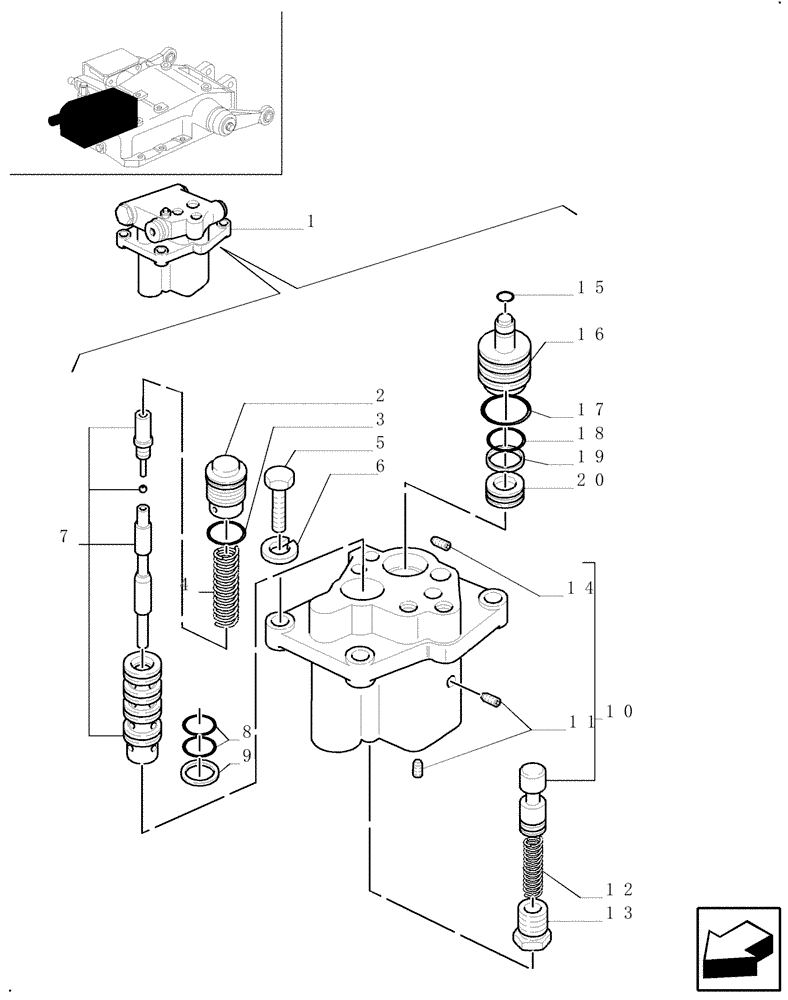

Запчасти Case IH JX80U (1.82.4[01]) - LIFT CONTROL VALVE - VALVES & PARTS (07) - HYDRAULIC SYSTEM

1

5180934

CONTROL VALVE

, Serial Range: -C4975

1шт.

1

47135711

CONTROL VALVE

, Start Serial: D4975

1шт.

47135711R

REMAN-HYD VALVE

JX100U, JX90U, JX70U, JX80U ALL Start Serial: D4975 (5/02-)

1шт.

47135711C

CORE-VALVE HYD

Return Number

1шт.

2

5150765

PLUG

1шт.

3

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

4

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

1шт.

5

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

7

5179745

HYDRAULIC VALVE

1шт.

8

14457381

O-RING,17.12mm ID x 2.62" Width

4шт.

9

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

2шт.

10

5155834

BODY

1шт.

11

5162458

PLUG,M10 x 1.25

M10X1.25

2шт.

12

5117729

SPRING,Compression, 11mm OD x 44mm L

1шт.

13

5117734

PLUG,M20 x 1.5

M20X1.5

1шт.

14

10269150

PLUG,M6 x 1 x 60mm L

M6

1шт.

15

14452581

O-RING,0.176" ID x 0.07" Width

1шт.

16

5150766

CONTROL UNIT

1шт.

17

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

18

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

19

5150752

GUIDE RING,19.3mm ID x 26mm OD x 3.3mm Thk

1шт.

20

5150759

PISTON

1шт.
