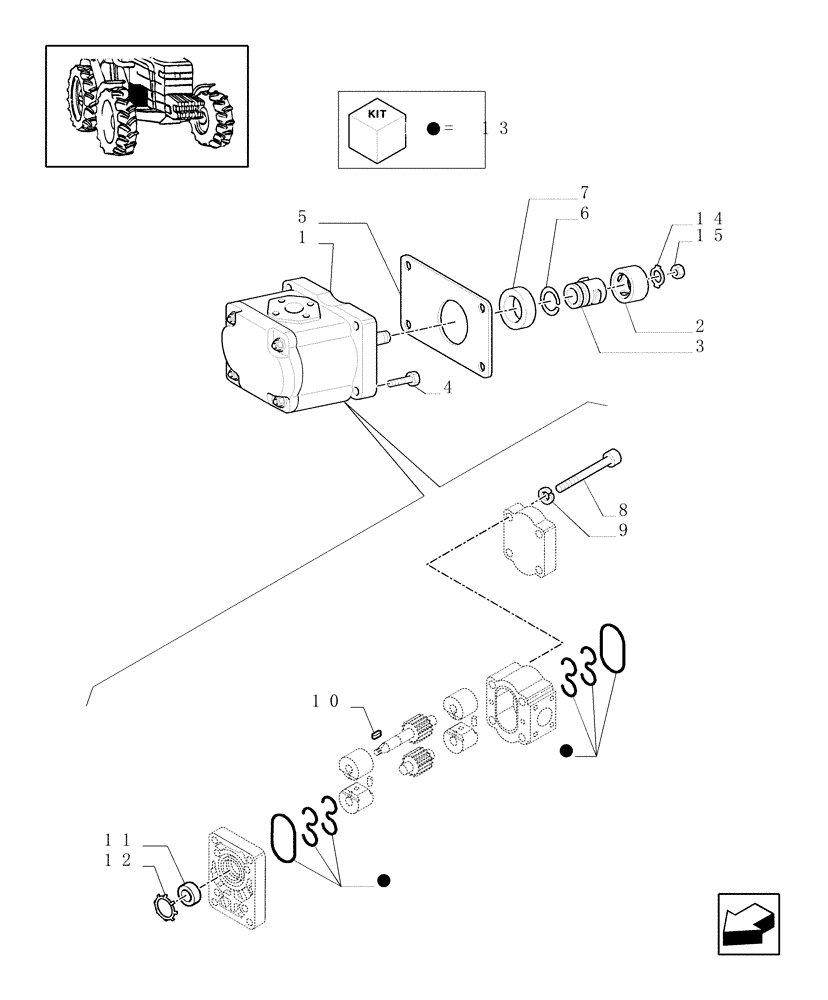

Запчасти Case IH JX80U (1.82.3) - HYDRAULIC PUMP - PARTS (07) - HYDRAULIC SYSTEM

1

5179726

HYDRAULIC PUMP

C42, JX80U JX90U JX100U

1шт.

84530167R

REMAN-HYD PUMP

JX80U, JX90U, JX100U All (5/02-); Reman for New P/N 5179726

1шт.

84530167C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5179726R

REMAN-HYD PUMP

JX80U, JX90U, JX100U, All (5/02)

1шт.

5179726C

CORE-HYDRAULIC PUMP

Return Number

1шт.

All tractors built for North America have the main hydraullic pump shown on VAR. 823 factory installed.

1шт.

1

5179728

ENGINE OIL PUMP,14.8 CC

C31, JX70U

1шт.

All tractors built for North America have the main hydraullic pump shown on VAR. 823 factory installed.

1шт.

2

5118569

COUPLING

1шт.

3

5118570

HUB

1шт.

4

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

4шт.

5

5167989

SEAL,0.8mm Thk

1шт.

6

13398376

SNAP RING,M40, Int

1шт.

7

5118568

CENTERING RING

36.5X54X5

1шт.

8

5120299

SCREW,Sq Hd, M10 x 1.25 x 107mm

M10 X1.25X107, JX70U

4шт.

8

5120497

SCREW,Sq Hd, M10 x 1.25 x 114mm

M10 x 1.25 x 114, JX80U JX90U JX100U

4шт.

9

76026107

WASHER

M10

4шт.

10

8273918

KEY

1шт.

11

7984178

KIT

1шт.

12

9967847

LOCK WASHER

1шт.

13

9967849

SEAL KIT

1шт.

14

8273920

LOCK WASHER

1шт.

15

8273919

NUT

Jam, G2, 7/16"-20

1шт.
