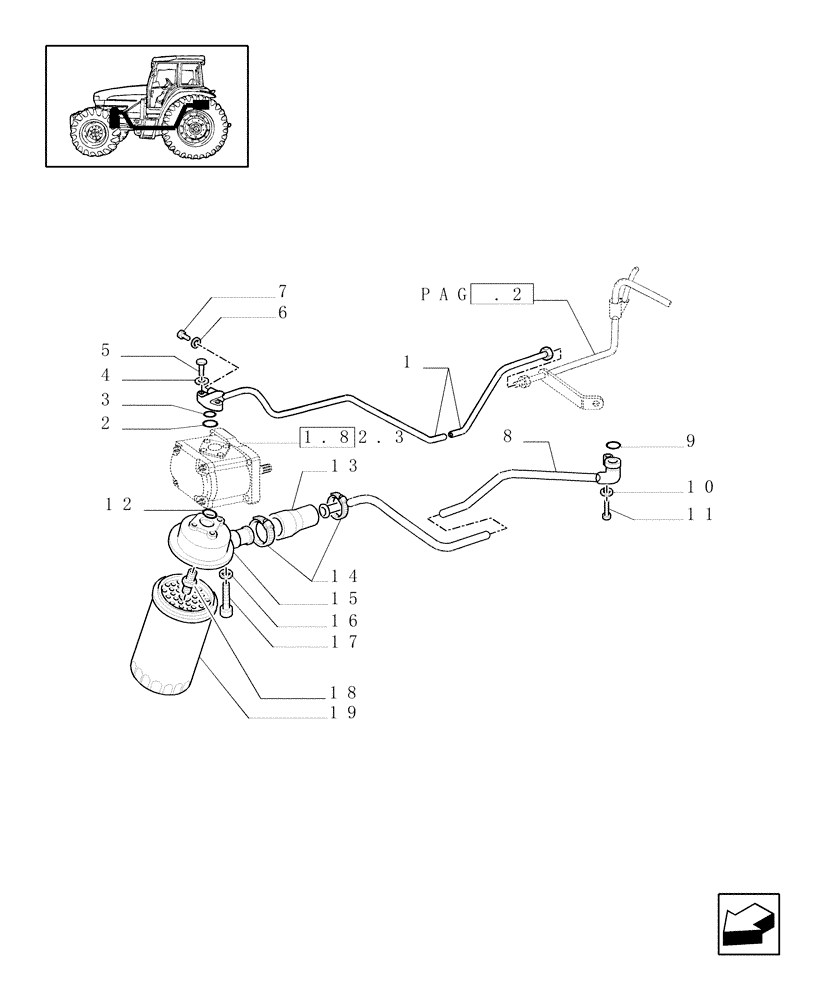

Запчасти Case IH JX80U (1.82.1[01]) - LIFT - FILTER & PIPES (07) - HYDRAULIC SYSTEM

1

5196732

TUBE

Delivery

1шт.

2

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

3

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

4

12035670

LOCK WASHER

M6

2шт.

5

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

6

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

10 x 16 x 1

1шт.

7

11903114

PLUG,M10 x 1.25 x 11

1шт.

8

5173812

TUBE

Suction

1шт.

9

14464080

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

10

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

11

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

1шт.

12

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

13

44909206

HOSE

1шт.

14

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

D = 32-50

2шт.

15

5160134

FILTER HEAD

1шт.

16

2852057

SEALING WASHER,M8 x 12 x 1 Thk

M8

4шт.

17

14306824

HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 8.8, Full Thd

4шт.

18

5167959

HYD CONNECTOR

1шт.

19

1931162

HYDRAULIC OIL FILTER

1шт.
