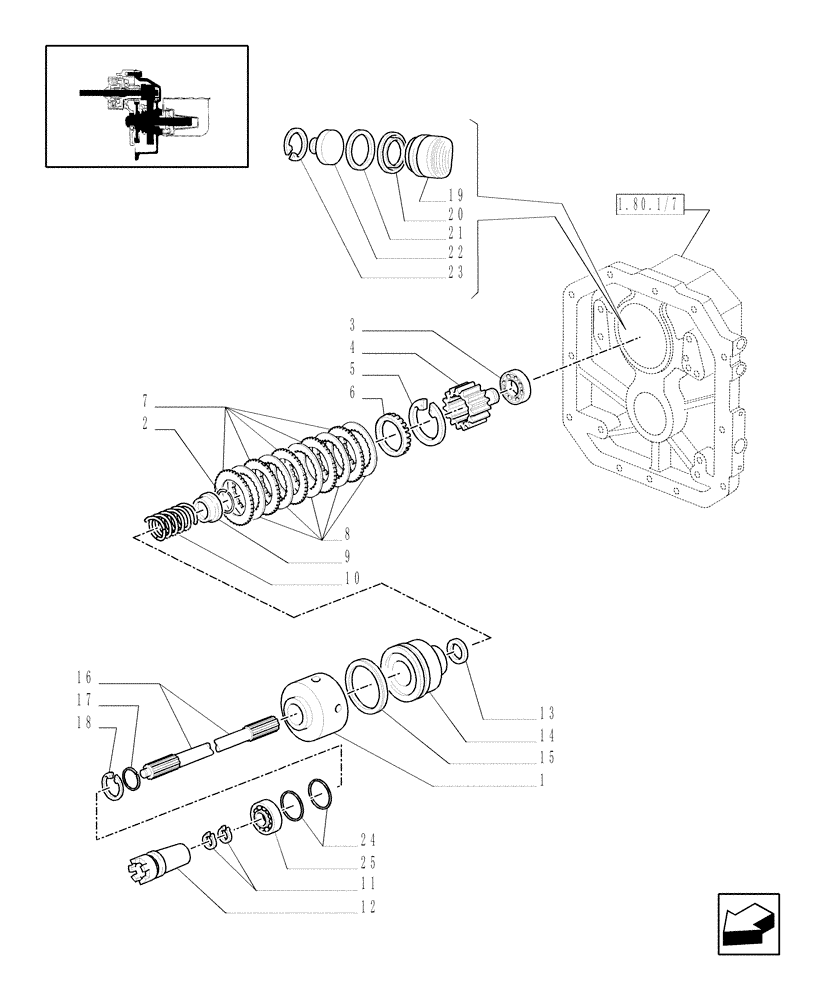

Запчасти Case IH JX80U (1.80.7/04[01]) - (VAR.729) SYNCHRO MESH GEARED POWER TAKE -OFF 540 - 750 - 1000 RPM - CLUTCH DISKS (07) - HYDRAULIC SYSTEM

1

5189184

HOUSING

1шт.

2

13399376

SNAP RING,M50, Int

1шт.

3

24905130

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

45X75X16

1шт.

4

5193206

HUB

1шт.

5

5124067

CIRCLIP

1шт.

6

5188572

CLUTCH PLATE

1шт.

7

5189182

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 2.3mm Thk

5шт.

8

5165951

CLUTCH PLATE

5шт.

9

5193205

RETAINER CUP

1шт.

10

5171681

SPRING,Compression, 79mm OD x 61mm L

1шт.

11

11068876

SNAP RING,M40, Ext

2шт.

12

5176745

COUPLING

L=84MM

1шт.

13

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

56X3.2

1шт.

14

5189185

PISTON

1шт.

15

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

1шт.

16

5176739

SHAFT

1шт.

17

13398176

SNAP RING,M24, Int

1шт.

18

11067276

SNAP RING,M24, Ext

1шт.

19

5165953

PISTON

1шт.

20

14458480

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1шт.

21

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

22

5165946

DISC

1шт.

23

11060176

CIRCLIP,M45 x 1.75mm Thk, Int

1шт.

24

5175996

RETAINER

2шт.

25

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

45X100X25

1шт.
