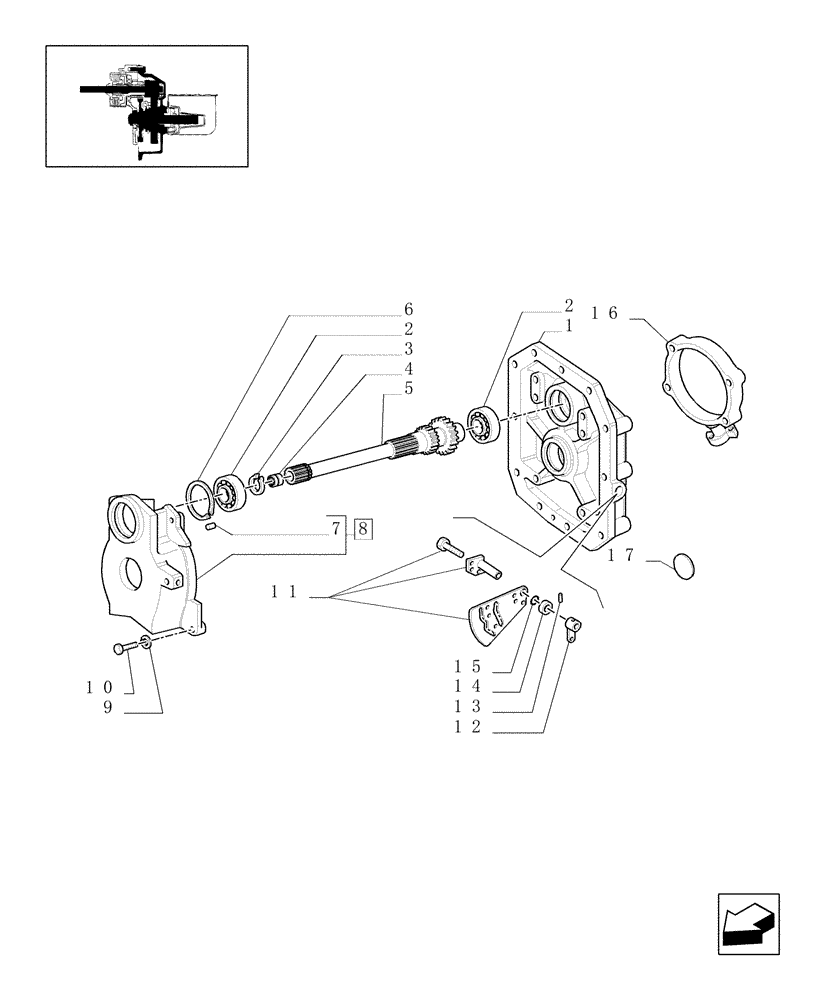

Запчасти Case IH JX80U (1.80.1/12[01]) - (VAR.818) POWER TAKE OFF - 540-750 RPM - SHAFTS AND COVER (07) - HYDRAULIC SYSTEM

1

5162808

COVER

Rear

1шт.

2

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

2шт.

3

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

4

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

15X21X16

1шт.

5

47132985

SHAFT

1шт.

6

11062476

SNAP RING,M90, Int

1шт.

7

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

8

5163093

SUPPORT

1шт.

9

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

10

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

11

5162792

SELECTOR

1шт.

12

5180999

LEVER

1шт.

13

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

14

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

2шт.

15

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

16

5164283

SUPPORT

1шт.

17

14328501

PLUG,M16, Tapered

1шт.
