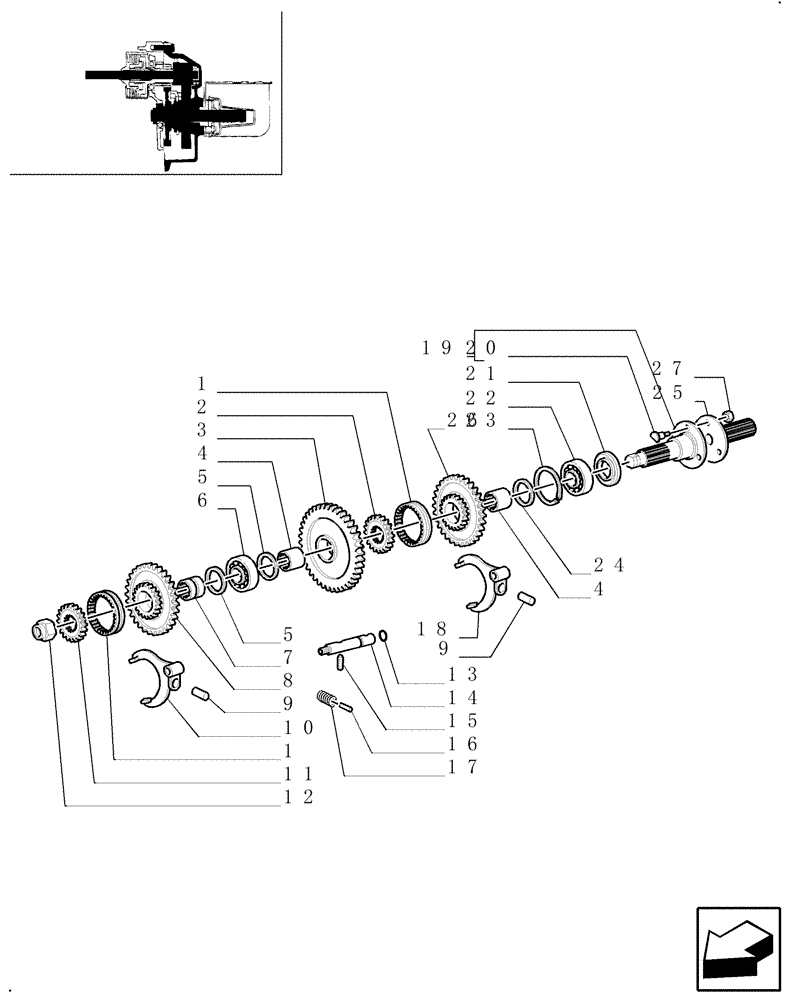

Запчасти Case IH JX80U (1.80.1/11[02]) - (VAR.817) POWER TAKE-OFF 540-750-1000 RPM - SHAFT, GEARS, FORK (07) - HYDRAULIC SYSTEM

1

5129513

SYNCHRONIZER,24T

2шт.

2

5129512

SLEEVE,24T, 14T

1шт.

3

5109733

DRIVEN GEAR

540 RPM

1шт.

4

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

5

5162811

THRUST WASHER,35.1mm ID x 62mm OD x 6.5mm Thk

2шт.

6

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35X80X21

1шт.

7

5162787

RING RACE

1шт.

8

5162067

DRIVEN GEAR

750 RPM

1шт.

9

5154545

PIN,10mm OD x 25mm L

D=10X25

2шт.

10

5162812

SHIFTER FORK

1шт.

11

5162794

GEAR,12T Internal / 24T External

1шт.

12

5100183

LOCK NUT,Hex, M328 x 1.5, Cl 8.8

M28X15

1шт.

13

14457081

O-RING,12.37mm ID x 2.62mm

1шт.

14

5162788

ROD

1шт.

15

13798621

SET SCREW,Hex Skt, M8 x 12mm, Cone Pt

1шт.

16

5150839

PAWL,8.5mm OD x 15.4mm L

1шт.

17

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

18

5162814

SHIFTER FORK

1шт.

19

5162823

SHAFT

1шт.

20

44012300

PIN,14mm OD x 37mm L

Cap, HH, M12X1.25X37

3шт.

21

5119203

SEAL,55mm ID x 80mm OD x 10mm Thk

1шт.

22

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

23

11062476

SNAP RING,M90, Int

1шт.

24

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

25

5185602

SHAFT,540 rpm, 6 Teeth

540 RPM

1шт.

26

5109736

DRIVEN GEAR

1000 RPM

1шт.

27

16105021

LOCK NUT,M12 x 1.25, Cl 10

3шт.
