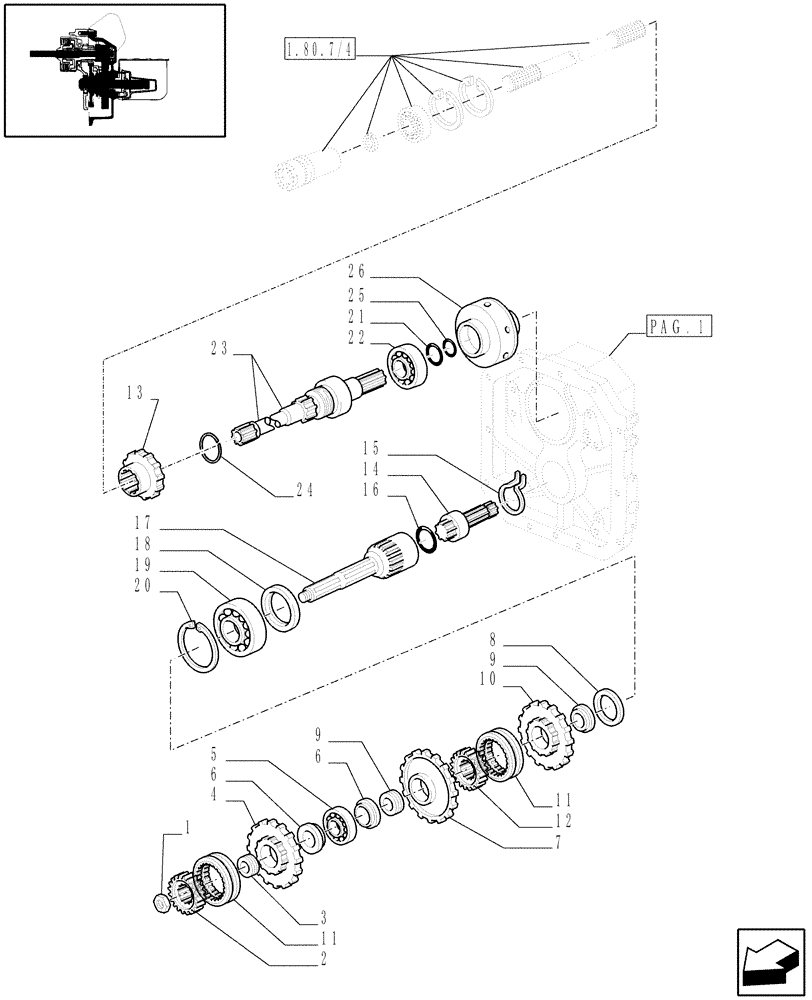

Запчасти Case IH JX80U (1.80.1/07[02]) - (VAR.729) SYNCHRO MESH GEARED POWER TAKE -OFF 540- 750 - 1000 RPM - GEAR SHAFTS (07) - HYDRAULIC SYSTEM

1

5100183

LOCK NUT,Hex, M328 x 1.5, Cl 8.8

1шт.

2

5162794

GEAR,12T Internal / 24T External

1шт.

3

5162787

RING RACE

1шт.

4

5162067

DRIVEN GEAR

750 RPM

1шт.

5

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35X80X21

1шт.

6

5162811

THRUST WASHER,35.1mm ID x 62mm OD x 6.5mm Thk

2шт.

7

5109733

DRIVEN GEAR

540 RPM

1шт.

8

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

9

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

10

5109736

DRIVEN GEAR

1000 RPM

1шт.

11

5129513

SYNCHRONIZER,24T

2шт.

12

5129512

SLEEVE,24T, 14T

1шт.

13

5165967

DRIVING GEAR

750 RPM

1шт.

14

5171332

PTO SHAFT

540 RPM, Serial Range: -1302901

1шт.

14

47133081

PTO SHAFT

540 RPM, Start Serial: 1302902

1шт.

14

5171356

PTO SHAFT

1000 RPM, Serial Range: -1302901

1шт.

14

47133076

PTO SHAFT,162mm L

1000 RPM, Start Serial: 1302902

1шт.

15

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

16

14459880

O-RING,56.82mm ID x 2.62" Width

1шт.

17

5165975

SHAFT

, Serial Range: -1302901

1шт.

17

5198354

SHAFT

, Start Serial: 1302902

1шт.

18

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

60 x 80 x 10

1шт.

19

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

20

11062476

SNAP RING,M90, Int

1шт.

21

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

22

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

55X100X21

1шт.

23

5176747

DRIVEN SHAFT

1шт.

24

13398976

SNAP RING,M40, Int

1шт.

25

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

26

5165957

BELL HOUSING

1шт.
