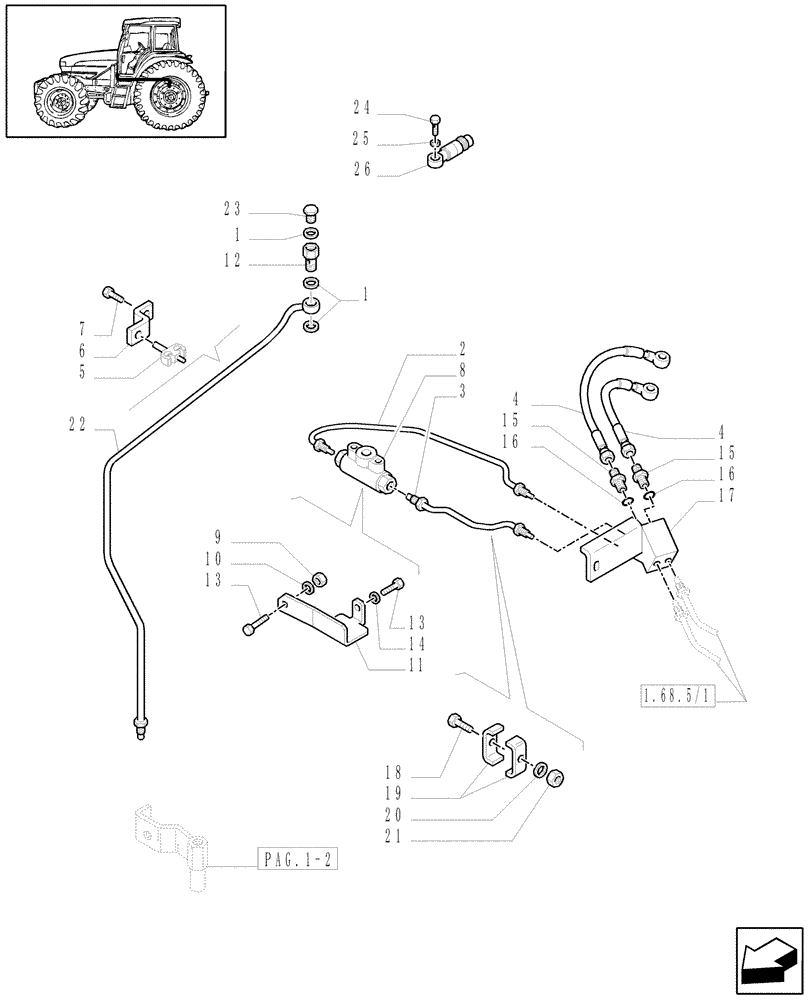

Запчасти Case IH JX80U (1.68.5/07[02]) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - VALVE, PIPES (05) - REAR AXLE

1

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X17X1,5

3шт.

2

5182336

RIGID TUBE

1шт.

3

5182335

FLEXIBLE HOSE

1шт.

4

5182418

FLEXIBLE HOSE

2шт.

5

14571880

SPRING CLIP

1шт.

6

5155804

BRACKET

1шт.

7

15853121

BOLT,Hex, M10 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

8

5143506

MASTER CYLINDER

Synchronizing

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

11

5182323

BRACKET

1шт.

12

5185683

HYD CONNECTOR

, Serial Range: -C5314

1шт.

13

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

2шт.

14

10516674

LOCK WASHER,M8

1шт.

15

80265235

HYD CONNECTOR

2шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

17

5182375

HYD CONNECTOR

1шт.

18

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

19

5161207

RETAINER COLLAR,7mm ID x 23mm L

2шт.

20

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

1шт.

21

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

22

5186124

RIGID TUBE

1шт.

23

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

, Serial Range: -C5314

1шт.

24

87392054

HYD CONNECTOR,M12 x 1 x 42.5mm L

, Start Serial: D5314

1шт.

25

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

, Start Serial: D5314

1шт.

26

82030175

BANJO FITTING,M8 x 1 x 53mm

, Start Serial: D5314

1шт.
