Запчасти Case IH JX80U (1.68.5/05[03]) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - BRAKE PIPES (05) - REAR AXLE

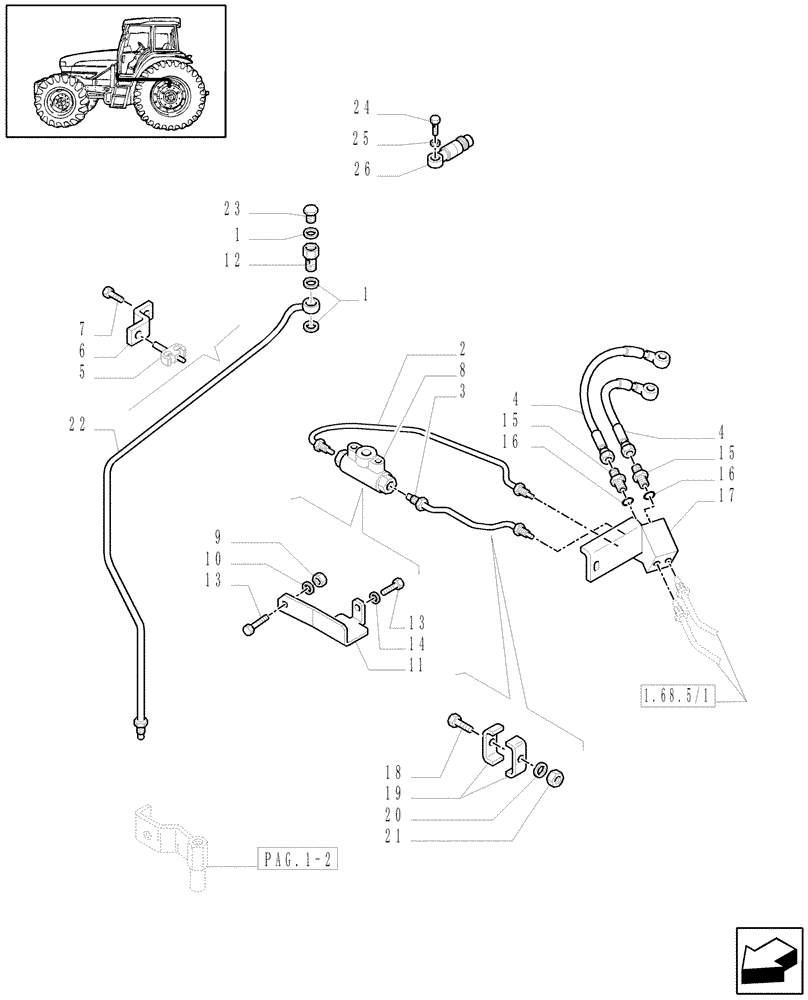

Схема запчастей Case IH JX80U - (1.68.5/05[03]) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - BRAKE PIPES (05) - REAR AXLE
ag.1-2
22
16
19
10
15
6
17
2
24
23
16
14
13
1
21
1
3
20
18
26
25
9
13
4
1
1.68.5/1
p
8
7
1
4
12
5
15

Артикул

Название

Примечание

Количество

1

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X17X1,5

3шт.

2

5182336

RIGID TUBE

1шт.

3

5182335

FLEXIBLE HOSE

1шт.

4

5182418

FLEXIBLE HOSE

2шт.

5

14571880

SPRING CLIP

1шт.

6

5155804

BRACKET

1шт.

7

15853121

BOLT,Hex, M10 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

8

5143506

MASTER CYLINDER

Synchronizing

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

11

5182321

BRACKET

JX70U, JX100U

1шт.

11

5182323

BRACKET

JX70U, JX80U

1шт.

12

5185683

HYD CONNECTOR

, Serial Range: -C5314

1шт.

13

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

7шт.

14

10516674

LOCK WASHER,M8

1шт.

15

80265235

HYD CONNECTOR

2шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

17

5182375

HYD CONNECTOR

1шт.

18

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

19

5161207

RETAINER COLLAR,7mm ID x 23mm L

2шт.

20

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

1шт.

21

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

22

5186124

RIGID TUBE

1шт.

23

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

, Serial Range: -C5314

1шт.

24

87392054

HYD CONNECTOR,M12 x 1 x 42.5mm L

, Start Serial: D5314

1шт.

25

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

, Start Serial: D5314

1шт.

26

82030175

BANJO FITTING,M8 x 1 x 53mm

, Start Serial: D5314

1шт.

Выбрано товаров: 27
