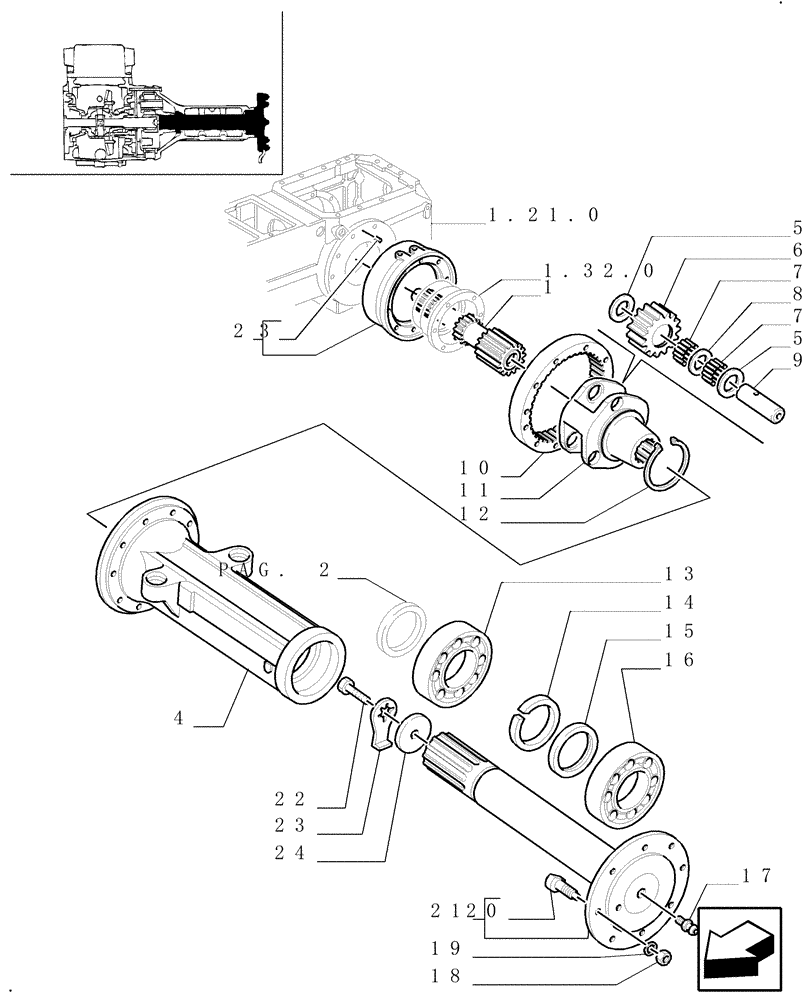

Запчасти Case IH JX80U (1.48.1/03[01]) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK., HYDR. TRANSM. (05) - REAR AXLE

1

5181721

HALF SHAFT

RH

1шт.

1

5181722

HALF SHAFT

LH

1шт.

2

5170102

SPACER

2шт.

3

5110094

DOWEL,10mm OD x 19.5mm L

6шт.

4

5170103

AXLE HOUSING

2шт.

5

5157720

THRUST WASHER,40mm ID x 70mm OD x 1mm Thk

12шт.

6

5157671

PINION

6шт.

7

5101688

NEEDLE BEARING,35.7mm ID x 49.7mm OD x 21mm W

12шт.

8

5157718

SPACER,42.5mm ID x 54.05mm OD x 4mm L

42.5 x 54.05 x 4

6шт.

9

5170095

PIN,40.15mm OD x 108mm L

6шт.

10

5170096

RING GEAR

2шт.

11

5170104

PLANET CARRIER

2шт.

12

5157726

CIRCLIP

2шт.

13

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65X120X23

2шт.

14

5123054

SPACER,127mm ID x 131mm OD x 6.5mm L

2шт.

15

5123205

SEAL,100mm ID x 130mm OD x 16mm Thk

100 x 130 x 16

2шт.

16

20645490

BALL BEARING,75 mm ID x 130 mm OD x 25 mm

75X130X25

2шт.

17

13407211

LUBE NIPPLE,M10 x 1

2шт.

18

12164224

NUT,M18 x 1.5, Cl 10

16шт.

19

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

19X40X6

16шт.

20

44011089

WHEEL BOLT

M18X1.5X56

16шт.

21

5170097

AXLE

2шт.

22

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

23

5157668

PLATE

2шт.

24

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.
