Запчасти Case IH JX80U (1.42.0/01[01]) - FRONT AXLE - 4-WD - POWER STEERING HYDRAULIC CONTROL - PIPES & OIL FILTER (04) - FRONT AXLE & STEERING

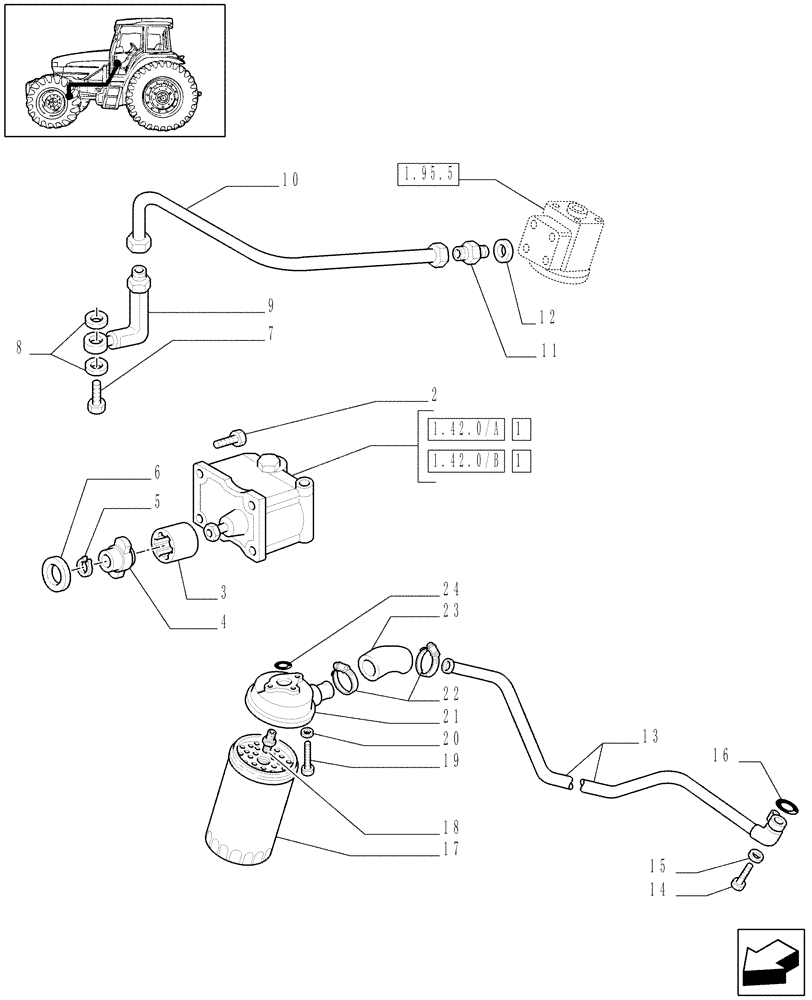

Схема запчастей Case IH JX80U - (1.42.0/01[01]) - FRONT AXLE - 4-WD - POWER STEERING HYDRAULIC CONTROL - PIPES & OIL FILTER (04) - FRONT AXLE & STEERING
1.95.5
8
23
15
1
1.42.0/b
7
4
6
17
1
10
24
21
11
16
9
18
2
5
12
1.42.0/a
19
20
14
3
22
13

Артикул

Название

Примечание

Количество

1

5180267

PUMP

A25XRP, JX70U

1шт.

1

5180271

HYDRAULIC PUMP,14.8 CC

Assy A31XRP1, JX80U, JX90U, JX100U

1шт.

5180271R

REMAN-HYD PUMP

JX80U, JX90U, JX100U All (5/02-)

1шт.

5180271C

CORE-HYDRAULIC PUMP

1шт.

2

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

4шт.

3

5118569

COUPLING

1шт.

4

5118570

HUB

1шт.

5

13398376

SNAP RING,M40, Int

1шт.

6

5118568

CENTERING RING

36.5X54X5

1шт.

7

5170235

BANJO BOLT,M18 x 1.5 x 35mm

1шт.

8

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

9

5176038

RIGID TUBE

1шт.

10

5174139

HOSE,13mm ID x 950mm L, SAE 100 R2AT

1шт.

11

82002542

HYD CONNECTOR,7/8" - 14 JIC x M22 x 1.5 ORFS

7/8"-14, M22X1.5

1шт.

12

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

13

5173831

RIGID TUBE

1шт.

14

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

1шт.

15

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

16

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

17

1931162

HYDRAULIC OIL FILTER

1шт.

18

47123299

HYD CONNECTOR

1шт.

19

14306831

HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 10.9, Full Thd

3шт.

20

2852057

SEALING WASHER,M8 x 12 x 1 Thk

M8

3шт.

21

47123298

FILTER HEAD

1шт.

22

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

D = 32-50

2шт.

23

5141298

HOSE,30.00 mm ID, 35.00 mm ID x 50.00 mm

1шт.

24

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

Выбрано товаров: 27
