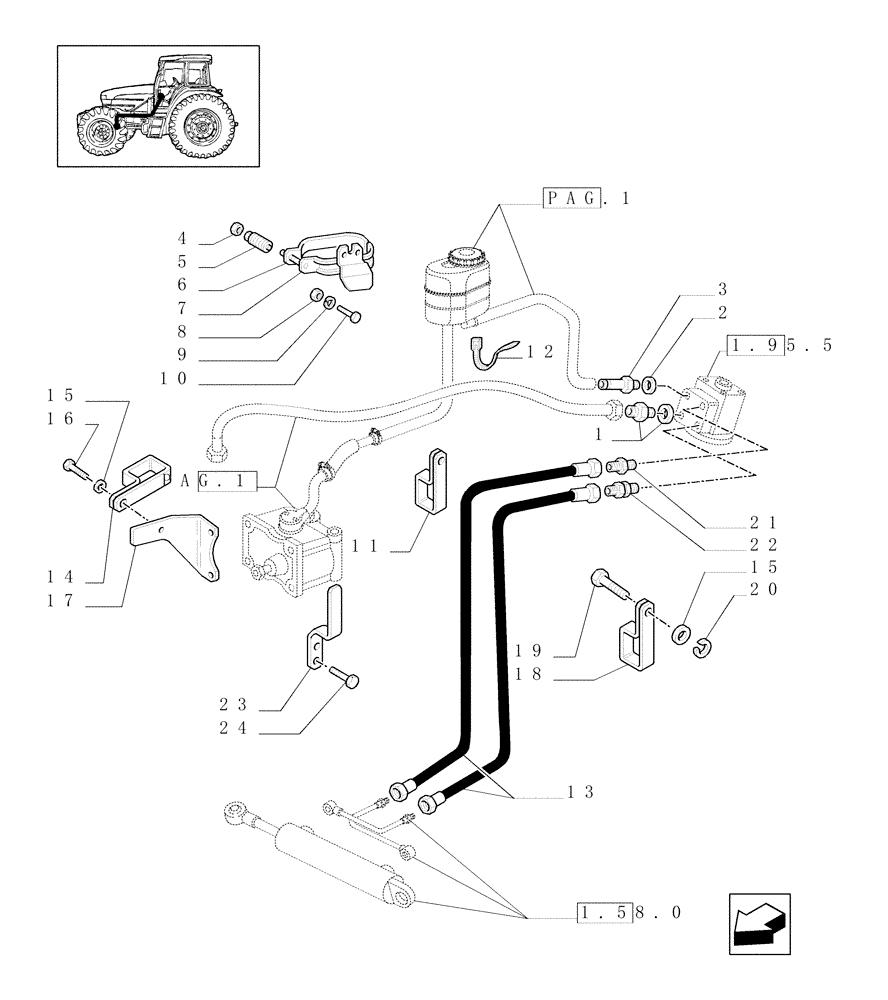

Запчасти Case IH JX80U (1.42.0[02]) - FRONT AXLE - 2-WD - POWER STEERING HYDRAULIC CONTROL - PIPES & BRAKETS (04) - FRONT AXLE & STEERING

1

82002542

HYD CONNECTOR,7/8" - 14 JIC x M22 x 1.5 ORFS

7/8"-14, M22X1.5

1шт.

2

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

3

5168009

TUBE

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

5

4238025

SPACER,17mm OD x 35mm L

1шт.

6

4999563

STRAP

1шт.

7

5154954

BRACKET

JX70U, JX80U

1шт.

7

5170416

HOSE CLIP

JX90U

1шт.

8

16100821

NUT,M8, Cl 10

2шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

10

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

11

5154837

SPACER

1шт.

12

5154887

CABLE TIE,M7.8 x 450

CABLE STRAP

1шт.

13

5168836

FLEXIBLE HOSE,8mm ID x 1850mm L, SAE 100R2

2шт.

14

5156429

CLAMP

1шт.

15

10516474

LOCK WASHER

M6

2шт.

16

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

17

5173895

BRACKET

1шт.

18

5174476

CLAMP

1шт.

19

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

20

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

21

82002496

HYD CONNECTOR,M18 x 1.5 ORFS x 9/16" - 18 JIC

9/16"-M18X1.5

1шт.

22

82002234

VALVE, PRESSURE CONT

Pressure Bias Valve

1шт.

23

5183525

BRACKET

JX70U, JX80U

1шт.

24

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.
