Запчасти Case IH JX80U (1.41.0[01]) - FRONT AXLE - 2WD - HUBS (04) - FRONT AXLE & STEERING

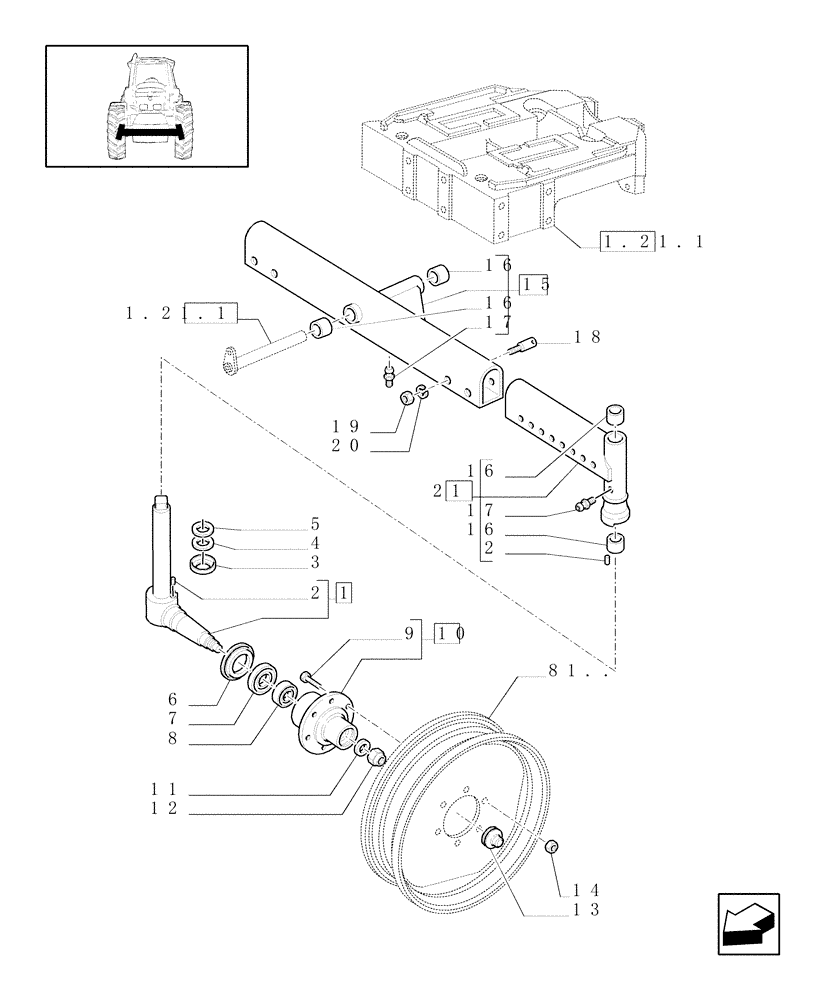

Схема запчастей Case IH JX80U - (1.41.0[01]) - FRONT AXLE - 2WD - HUBS (04) - FRONT AXLE & STEERING
7
16
11
19
13
2
10
12
1
5
9
21
15
3
17
81..
14
16
6
1.21.1
1.21.1
8
16
20
18
4
2
16
17

Артикул

Название

Примечание

Количество

1

5166146

SPINDLE

RH

1шт.

1

5166148

SPINDLE

LH

1шт.

2

10839510

DOWEL,M6 x 9

4шт.

3

566125

CUP

2шт.

4

5144475

THRUST WASHER,38mm ID x 61mm OD x 4mm Thk

2шт.

5

561953

THRUST WASHER,38.12mm ID x 61mm OD x 4mm Thk

2шт.

6

4951077

SEAL,50.7mm ID x 91.5mm OD x 11mm Thk

2шт.

7

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Roller/Taper, Inside

2шт.

8

5132343

TAPERED BEARING,25.4mm ID x 57.17mm OD x 19.43mm W

Roller/Taper, Outside

2шт.

9

81816580

WHEEL BOLT,1/2" - 20 x 1 3/4"

Front Wheel Hub

12шт.

10

5166086

HUB

2шт.

11

559715

WASHER,20.5mm ID x 32mm OD

Flat, M20X1.5

2шт.

12

14044271

NUT,Hex, M20 x 1.5

M20X1.5

2шт.

13

4957312

HUB CAP

2шт.

14

47126502

WHEEL NUT

1/2"-20, Front Wheel Bolt

10шт.

15

5166140

AXLE

1шт.

16

5115656

BUSHING,38.05mm ID x 42mm OD x 40mm L

6шт.

17

13407211

LUBE NIPPLE,M10 x 1

3шт.

18

5168833

LOCK PIN,30mm OD x 110mm L

4шт.

19

16980931

NUT

M20X1.5

4шт.

20

11191779

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20X30X4.6

4шт.

21

47124381

TRACK ROD END ASSY

2шт.

Выбрано товаров: 22
