Запчасти Case IH JX80U (1.40.0/63[03]) - (VAR.308-308/1) FRONT AXLE CL.2 HYDR. LOCKING 30-40 KM/H. - ADJUSTING SHIMS (04) - FRONT AXLE & STEERING

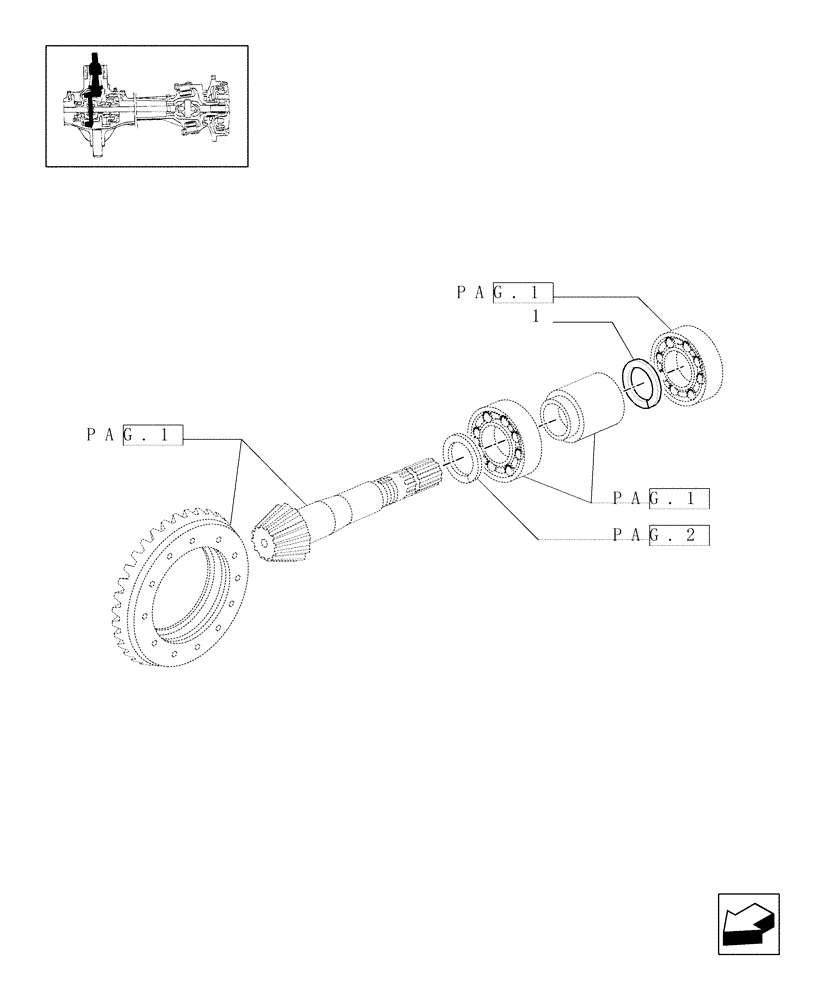

Схема запчастей Case IH JX80U - (1.40.0/63[03]) - (VAR.308-308/1) FRONT AXLE CL.2 HYDR. LOCKING 30-40 KM/H. - ADJUSTING SHIMS (04) - FRONT AXLE & STEERING
1
pag.1
pag.1
pag.2
pag.1

Артикул

Название

Примечание

Количество

1

4997456

SHIM,35.1mm ID x 43mm OD x 2.5mm Thk

1шт.

1

4997457

SHIM,35.1mm ID x 43mm OD x 2.6mm Thk

1шт.

1

4997458

SHIM,35.1mm ID x 43mm OD x 2.7mm Thk

1шт.

1

5129151

SHIM,35.1mm ID x 43mm OD x 2.55mm Thk

1шт.

1

5129152

SHIM,35.1mm ID x 43mm OD x 2.65mm Thk

1шт.

1

5169313

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.75mm Thk

1шт.

1

5169314

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.80mm Thk

1шт.

1

5169315

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.85mm Thk

1шт.

1

5169316

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.90mm Thk

1шт.

1

5169317

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.95mm Thk

1шт.

1

5169318

SHIM,35.1mm ID x 43mm OD x 4mm Thk

1шт.

1

5169319

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.05mm Thk

1шт.

1

5169320

SHIM,35.1mm ID x 43mm OD x 4.1mm Thk

1шт.

1

5169321

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.15mm Thk

1шт.

1

5169322

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.20mm Thk

1шт.

1

5169323

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.25mm Thk

1шт.

1

5169324

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.30mm Thk

1шт.

1

5169325

SHIM,35.1mm ID x 43mm OD x 4.35mm Thk

1шт.

1

5169326

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.40mm Thk

1шт.

1

5169327

SHIM,35.1mm ID x 43mm OD x 4.45mm Thk

1шт.

1

5169328

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.50mm Thk

1шт.

1

5169329

SHIM,35.1mm ID x 43mm OD x 4.55mm Thk

1шт.

1

5169330

SHIM,35.1mm ID x 43mm OD x 4.6mm Thk

1шт.

1

5169331

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.65mm Thk

1шт.

1

5169332

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.70mm Thk

1шт.

1

5169333

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.75mm Thk

1шт.

1

5169334

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.80mm Thk

1шт.

1

7888010

SHIM,35.1mm ID x 43mm OD x 0.5mm Thk

1шт.

Выбрано товаров: 28
