Запчасти Case IH JX80U (1.40.0/63[01]) - (VAR.308-308/1) FRONT AXLE CLASS 2 HYDR. LOCKING 30-40 KM/H.- FRONT BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING

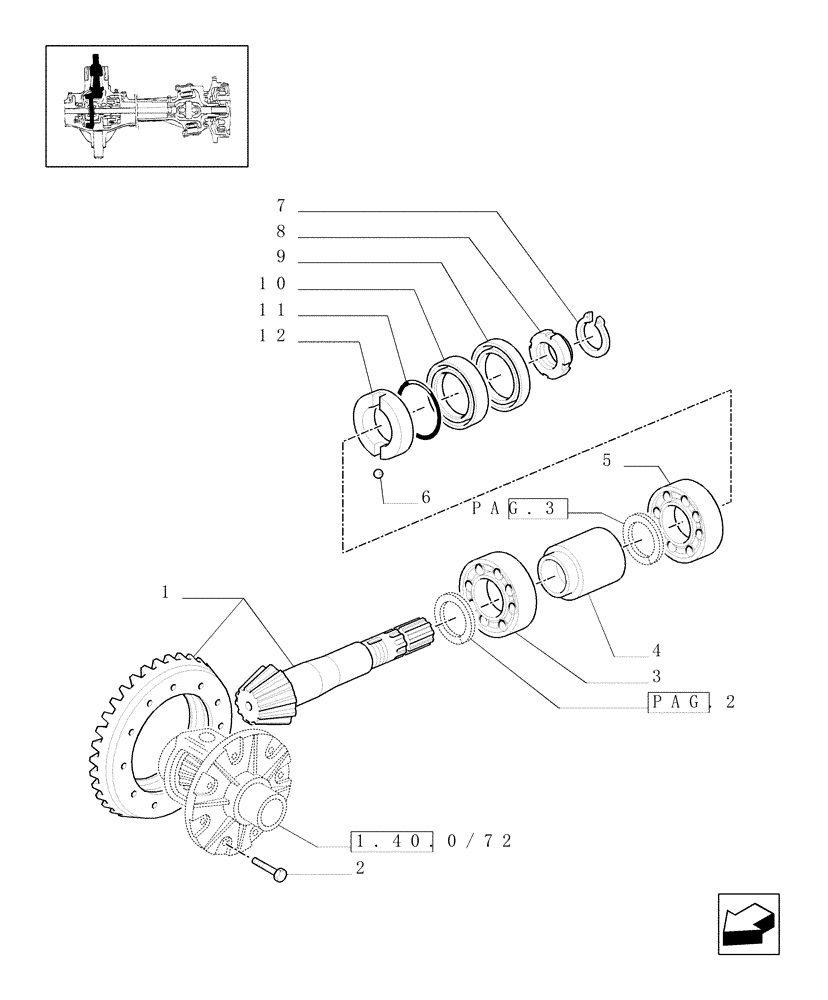

Схема запчастей Case IH JX80U - (1.40.0/63[01]) - (VAR.308-308/1) FRONT AXLE CLASS 2 HYDR. LOCKING 30-40 KM/H.- FRONT BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING
5
1
pag.2
9
1.40.0/72
7
6
2
pag.3
11
3
8
12
10
4

Артикул

Название

Примечание

Количество

1

5142023

GEAR SET

Ratio 9/39, VAR. 308

1шт.

2

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

Roller/Taper, 41.275X82.55X26.543

1шт.

4

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

5

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

Roller/Taper, 35X72X28

1шт.

6

20419320

BALL,6.35mm OD

D = 6.35

1шт.

7

11067776

SNAP RING,M29, Ext

1шт.

8

5143242

RING NUT,M35 x 1.5

M35

1шт.

9

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

10

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

45X75X10

1шт.

11

14454380

O-RING,31.47mm ID x 1.78" Width

1шт.

12

5142026

RING,35.1mm ID x 45mm OD x 22mm L

1шт.

Выбрано товаров: 12
